For just $ 4.79 , buy XH-M603/XH-M604 Battery Charging Control Board – XH-M603 from the wholesale webshop online.

Specifications

ColorStyle A
Gross Weight 0.055kg
Volume Weight 0.046kg
Length 12.500cm
Width 8.700cm
Height 1.900cm
Weight 0.050kg
With Retail Packaging No

Product Description

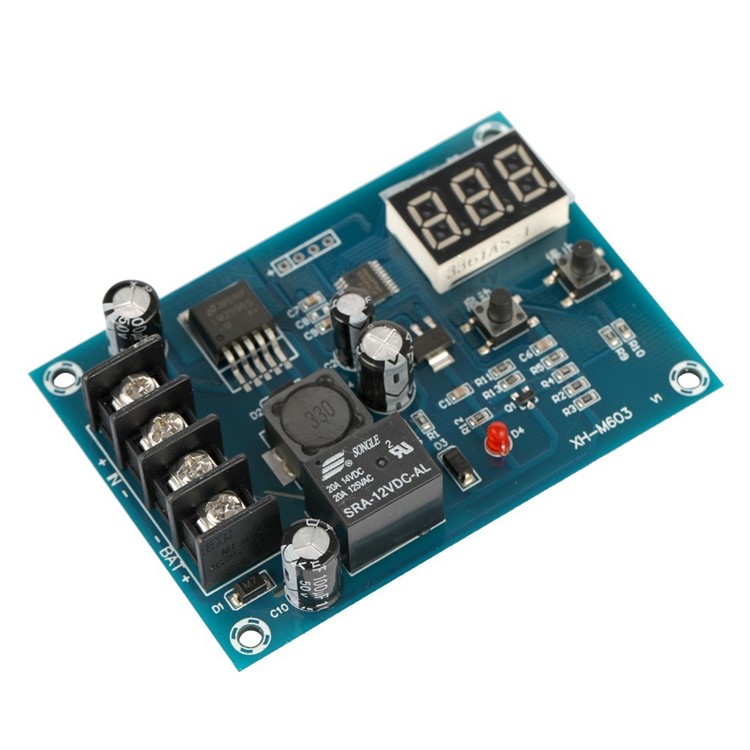

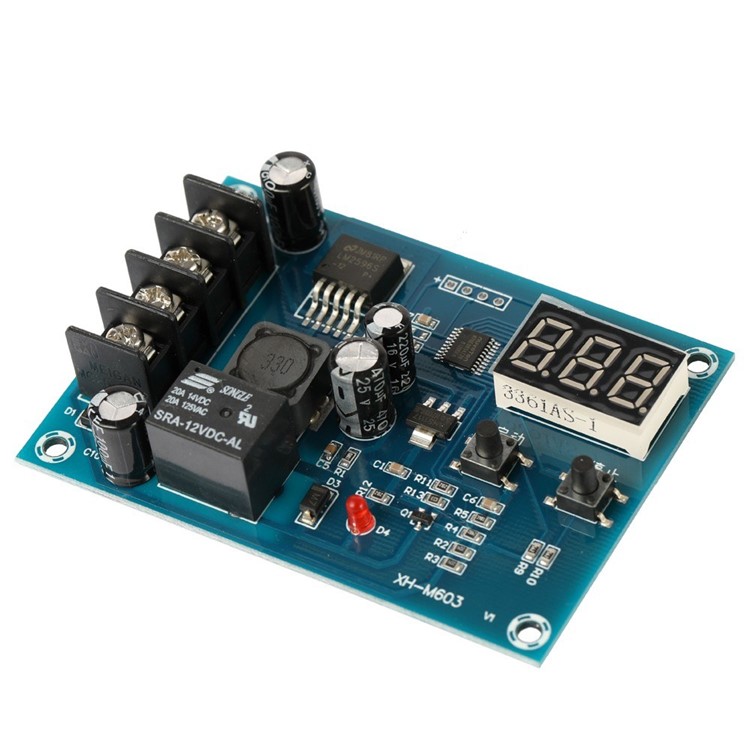

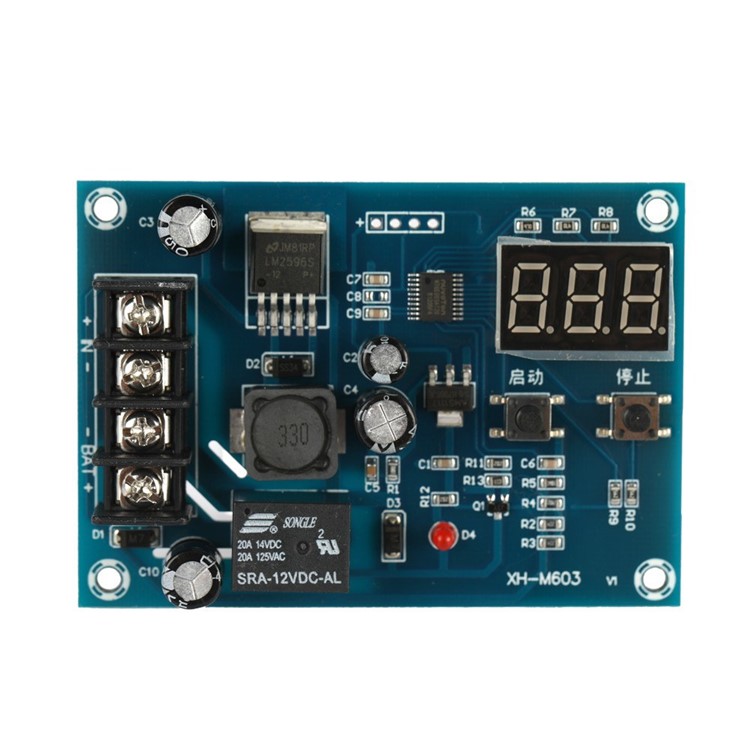

XH-M603/XH-M604 Battery Charging Control Board – XH-M603

Easy to use and install, has a long service life. It needs DIY and can improve your hands-on ability.

  • Easy to use and install, can improve your hands-on ability

  • It can be set free to start charging voltage and stop charging voltage

  • Can be used in household rechargers, solar, wind turbines and so on

  • 1.6mm double-layer high-density glass fiber circuit board, the edge does not layer and bulge when used for a long time, has a long service life

Specification:

  • Main material: PCB

  • Model: XH-M603, XH-M604

  • Input voltage: XH-M603: DC 10-30V; XH-M604: DC 6-60V (max 80V)

  • Display precision: 0.1V

  • Control precision: 0.1V

  • Output type: direct output

  • Voltage tolerance: +/-0.1V

  • Application fields: XH-M603: 12-24V storage battery; XH-M604: 6-60V storage battery

  • Item size: XH-M603: 82x58x16mm / 3.2×2.3×0.6in; XH-M604: 81x54x22mm / 3.2×2.1×0.9in

Package included:

  • 1 x Battery Charging Control Board
