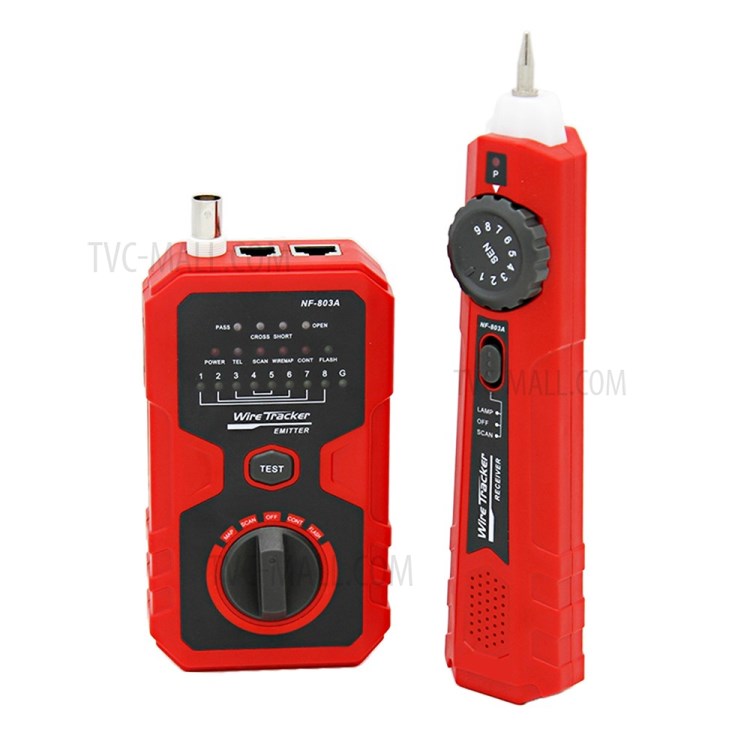

NF-803A Network Cable Tester for Ethernet LAN Cable Landline Phone Wire Testing Tool

• This tester is for testing the continuity of network cable and fixed phone wire

• Check telephone line condition (clear, busy or ringing) and polarity test

• Test telephone cable, network cable, video line, BNC cables and electric cables quickly and accurately

• Port flash function helps you directly find target cables connected with switch

• Premium material, compact design, your great helper of life

• Note: The batteries needed for transmitter and receiver are not included.

Specifications:

• Material: ABS

• Main functions: Test continuity of network cable, fixed phone cable, BNC cable and electric cable

• Transmitter Specification:

• The max. distance of cable: 305m

• Cable test types: RJ45, RJ11, BNC

• Tone mode: 2 tone adjustable

• Max. signal voltage: 8Vp-p

• Max. distance of transmission: 600m for RJ45 & RJ11, 100m for BNC

• Port: RJ45, RJ11, BNC

• AC anti-jamming: No

• Protected against voltage: DC48V, 5mA

• Power: 2 * DC 1.5V AA battery(not included)

• Low voltage indicate: 2.5+/-0.2V

• Size: 13.5 * 7.8 * 3.5cm / 5.31 * 3.07 * 1.38in

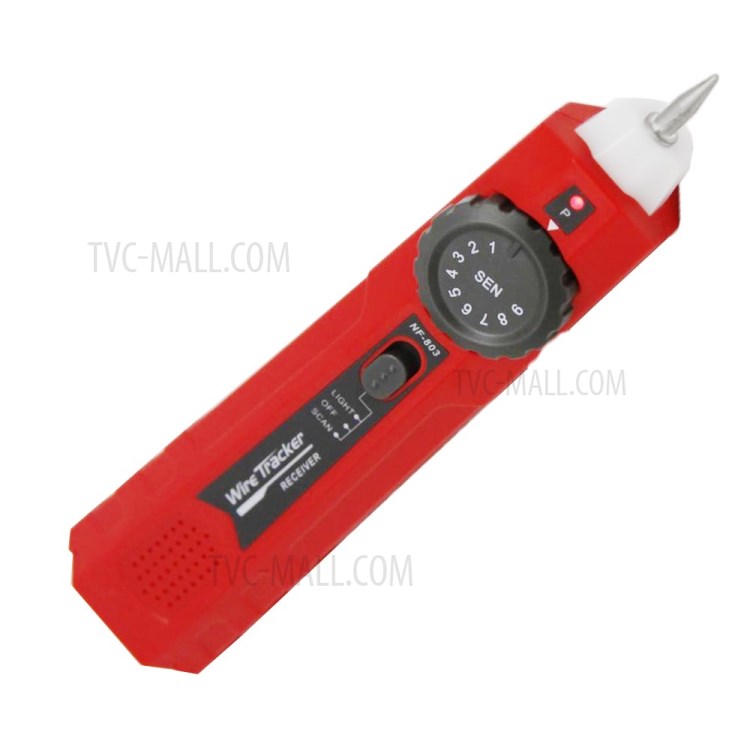

• Receiver Specification:

• Port: RJ45-8P

• Power: 2 * DC 1.5V AA battery(not included)

• Low voltage indicate: 2.5+/-0.2V

• Size: 20.3 * 4.5 * 3.3cm / 7.99 * 1.77 * 1.30in

• Item weight: 235g / 8.29oz
