For just $ 23.58 , buy LCD GSM900MHz Double-end Phone Signal Booster Phone Signal Repeater Signal Amplifier Set with Yagi Antenna – EU Plug from the wholesale webshop online.


Plug EU Plug
Gross Weight 1.614kg
Volume Weight 3.226kg
Length 48.000cm
Width 20.000cm
Height 15.000cm
Weight 1.441kg
With Retail Packaging No

Product Description

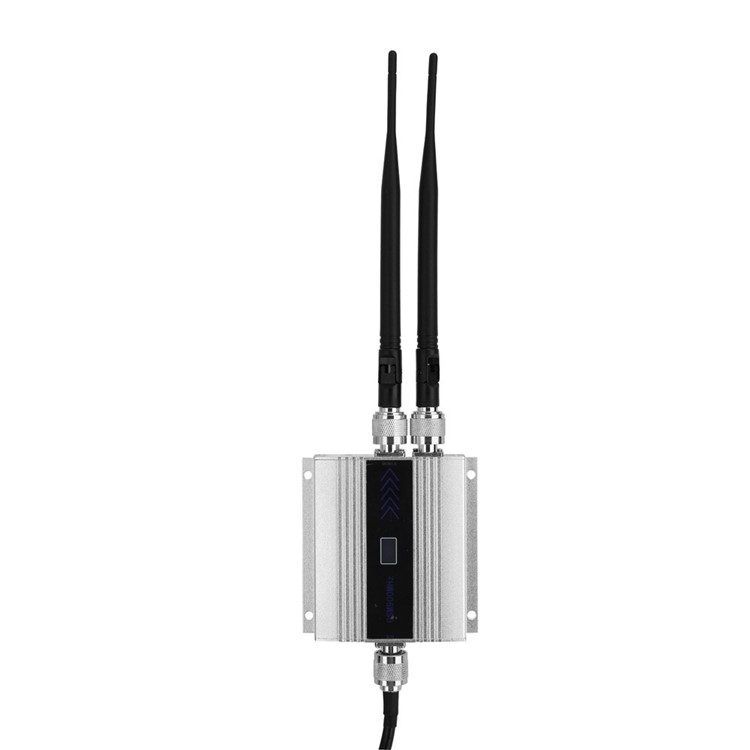

LCD GSM900MHz Double-end Phone Signal Booster Phone Signal Repeater Signal Amplifier Set with Yagi Antenna – EU Plug

The device is featured by easy installation and operation and no interference. It is the perfect device for boosting mobile phone signal. A mobile phone repeater could also improve indoor electromagnetism environments, protract cellular battery life and reduce radiation of cellphones.

  • LCD display function to display signal reception

  • Suitable for blind spot signal amplification in various indoor places such as conference halls, hotels, and large buildings

  • Expand the coverage area of the base station signal

  • Improve the coverage of sending and receiving mobile phone signals

  • Reduce the radiation of the mobile phone to the human body

  • Extend the time and life of the mobile phone battery

  • Easy to install, environmentally friendly, small size, flexible configuration according to specific application occasions

  • Full-duplex work, high isolation between uplink and downlink, will not interfere with each other.

  • With advanced digital filtering technology, out-of-band rejection is particularly fine

  • The outdoor overflow signal is small and does not interfere with the base station receiving sensitivity

  • The call process is smooth, not stuck, not interrupted, improving work efficiency

  • Applicable to all areas with poor indoor signal and no signal, such as high-rise buildings, elevators, office buildings, basements, KTV, yachts, urban villages, tunnels, remote mountainous areas, etc


  • Material: metal

  • Color: silver+grey

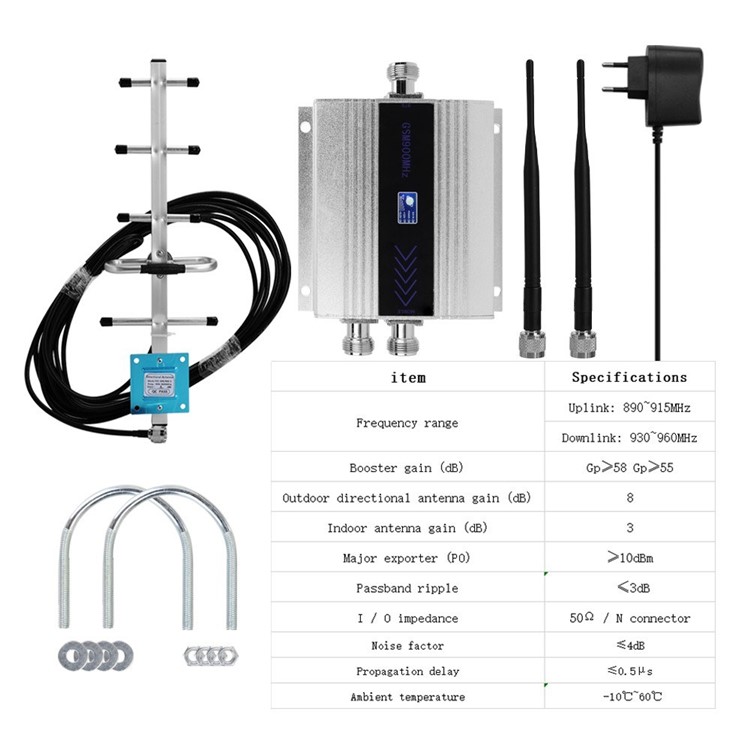

  • Frequency range:

  • Uplink: 890~915MHz

  • Downlink: 930~960MHz

  • Booster gain (dB): Gp≥58 Gp≥55

  • Outdoor directional antenna gain (dB): 8

  • Indoor antenna gain (dB): 3

  • Major exporter (PO): ≥10dBm

  • Passband ripple: ≤3dB

  • I / O impedance: 50Ω / N connector

  • Noise factor: ≤4dB

  • Propagation delay: ≤0.5μs

  • Ambient temperature: -10℃~60℃

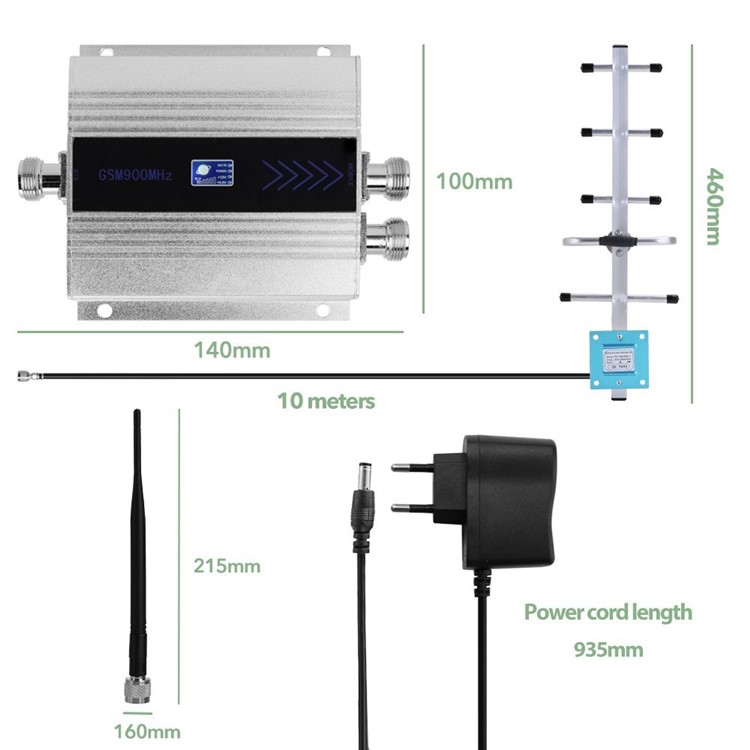

  • Item size: 140 * 100 * 20mm / 5.5 * 3.9 * 0.8in


  • Please confirm the local frequency band when purchasing.

Compatible with:

  • Other Phone Models

Package included:

  • 1 x Mobile Phone Signal Repeater

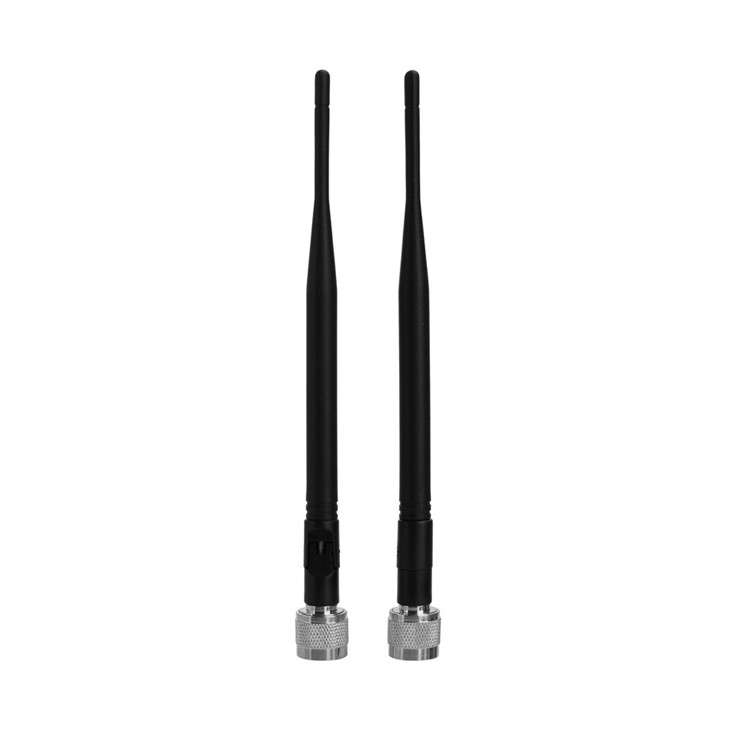

  • 2 x Indoor Antenna
  • 1 x Power Adapter

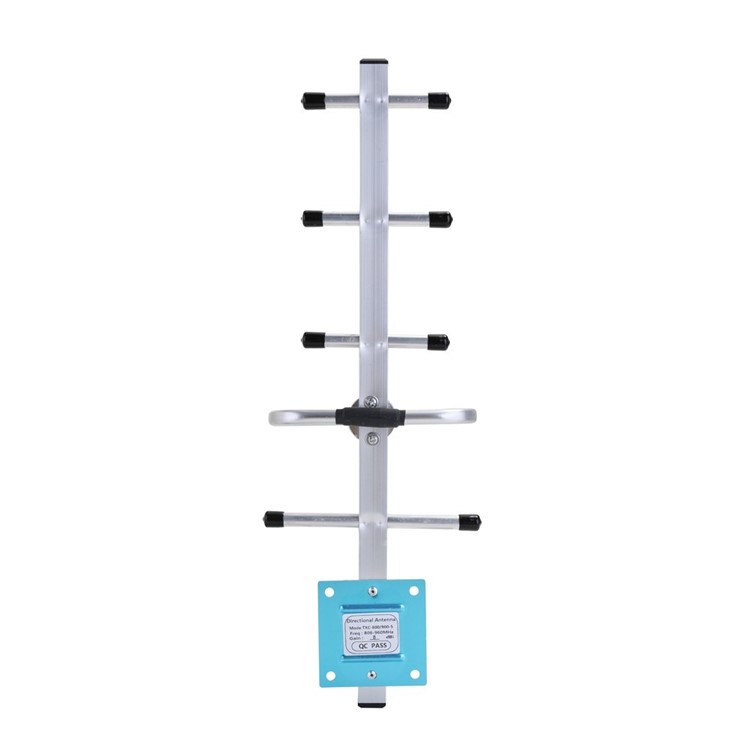

  • 1 x Outdoor Yagi Antenna with 10 Meters Cable
  • 1 x Set Mounting Accessories
  • 1 x User Manual
