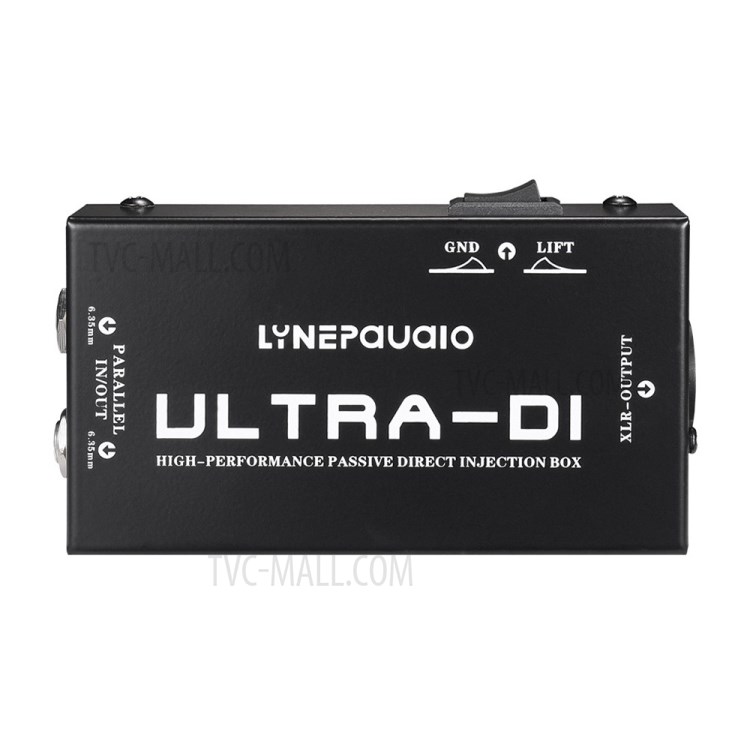

High-performance Passive DI-Box Direct Injection Box Balanced & Unbalance Audio Signal Converter

Features:

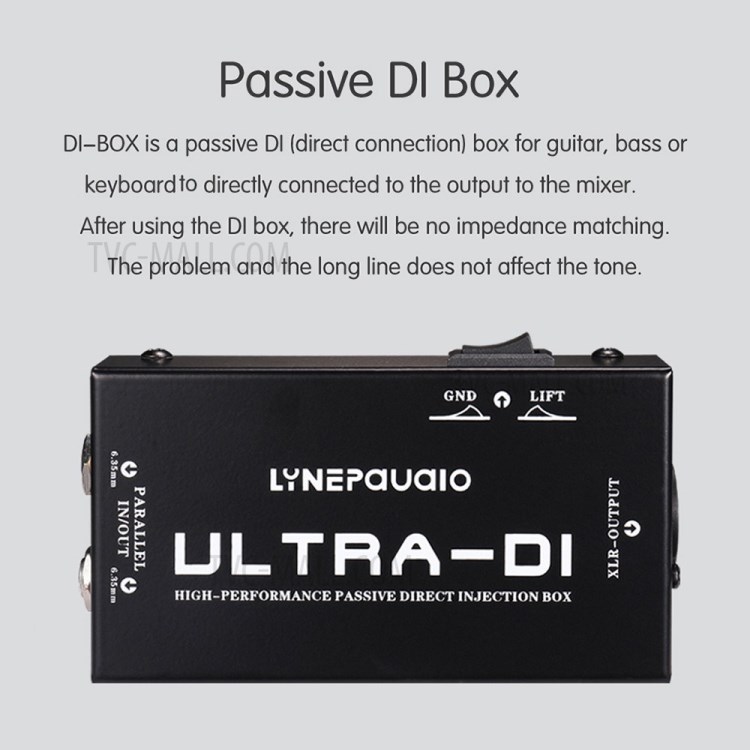

• Compact passive direct injection box for converting a high-impedance, line level and unbalanced output signal to a low-impedance, microphone level and balanced input signal

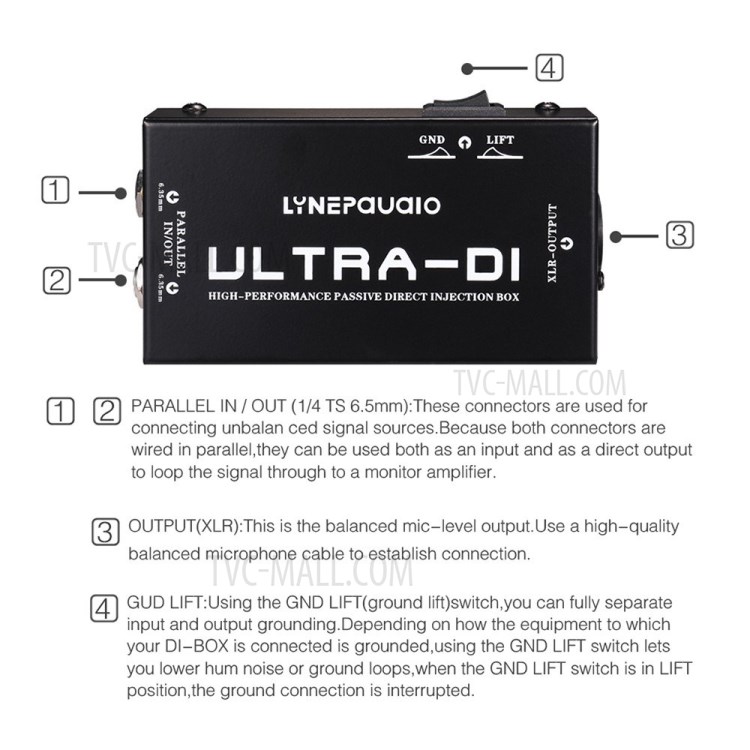

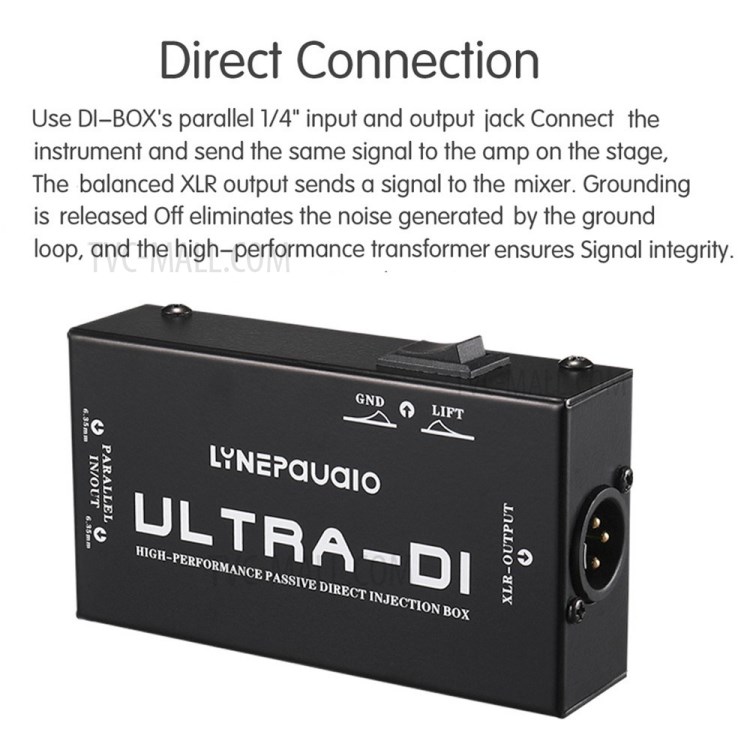

• 2 parallel IN/OUT(1/4 inch TS) interfaces for connecting unbalanced audio signal sources, both can work as an input and a direct output to loop the signal through to a monitor amplifier

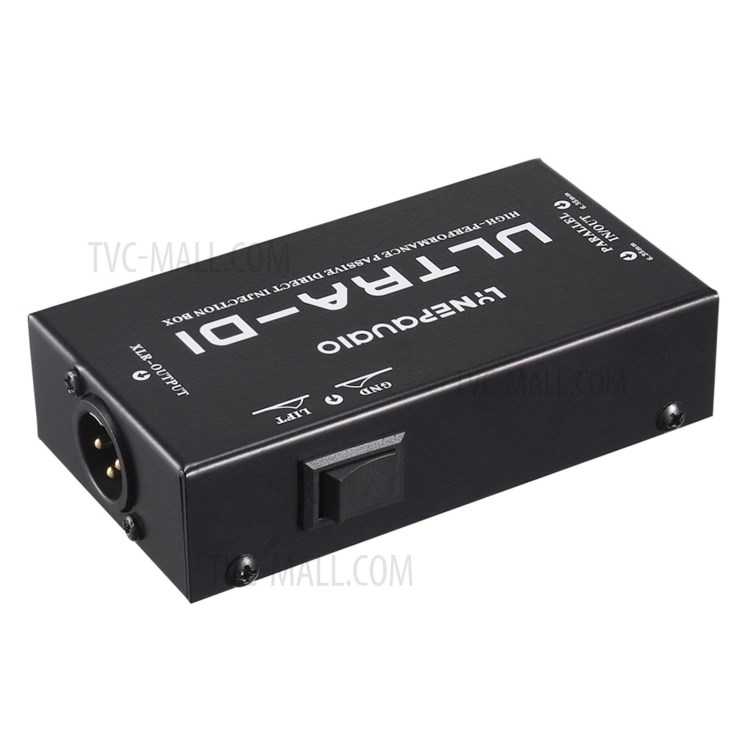

• 1 XLR balanced mic-level output, you need to use a high-quality balanced microphone cable to establish connection

• Using the GND LIFT switch, you can fully separate input and output grounding to lower hum noise or ground loops. When the switch is in LIFT position, the ground connection is interrupted

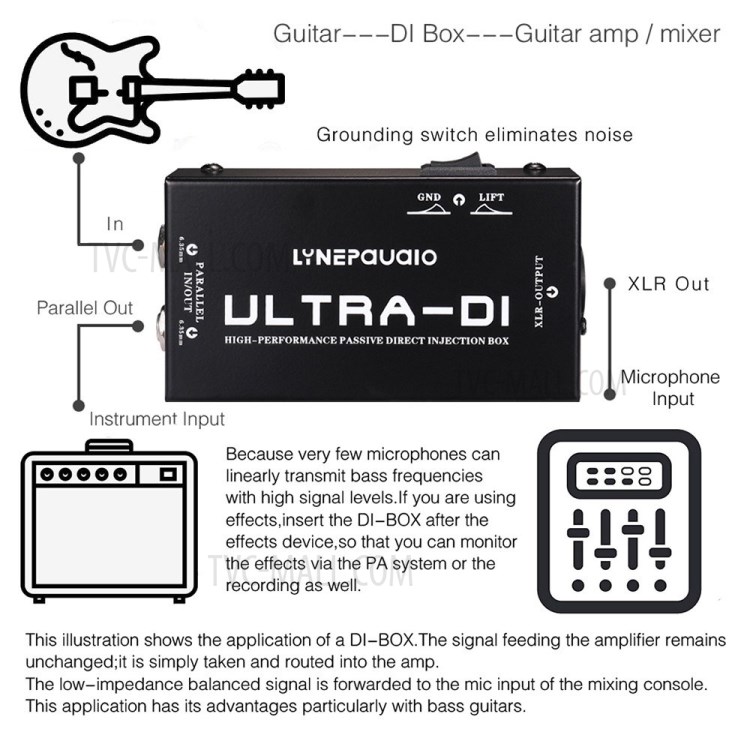

• Minimizing the unwanted noise, distortion, ground loops, and maintaining signal integrity, frequently be used to connect an electric guitar or electric bass to a mixing console's microphone input jack

Specifications:

• Material: Metal

• Frequency Response: 40Hz(-3db) to 20kHz

• THD + N(distortion): 0.007% at 1kHz, input level +4dBu

• Level Change(input-output): -20dB

• Impedance Ratio(input-output): -20dB

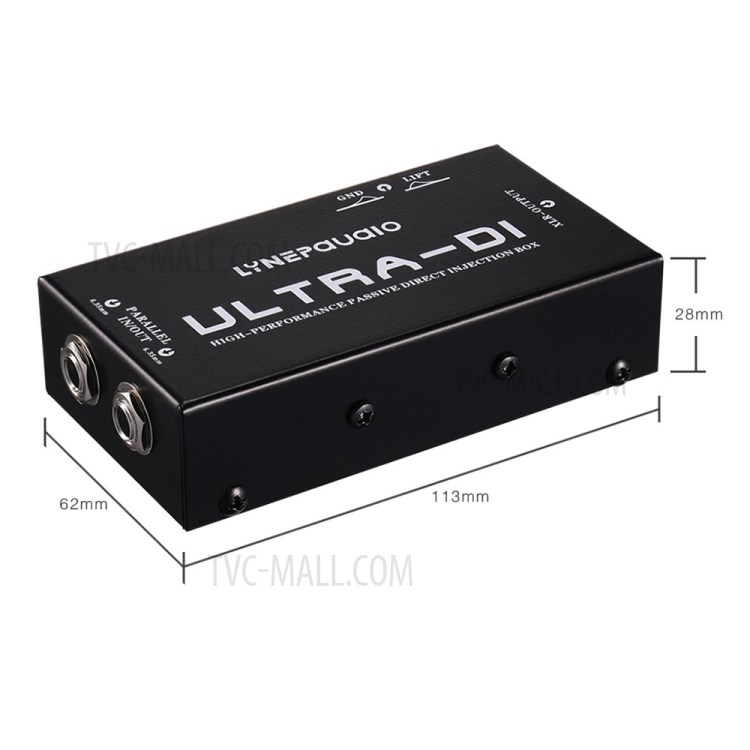

• Item Size: 11.3 * 6.2 * 2.8cm/ 4.4 * 2.4 * 1.1in

• Item Weight: 250g/ 8.8oz
