Price:
$60.95

Free Shipping

For just $60.95 , buy HANTEK CC-65 AC / DC Current Clamp Meter Multimeter with BNC Connector from the wholesale webshop online.

Product Description

HANTEK CC-65 AC / DC Current Clamp Meter Multimeter with BNC Connector
  • AC/DC frequency range: Up to 20KHz
  • Effective Measurement Range: 20mA to 65A DC
  • It is a transducer that allows your multimeter to measure current data and enables your oscilloscope to measure the current waveforms
  • Its current transducer is composed of permalloy and hall elements, which linearly transform the AC or DC current to AC or DC current voltage

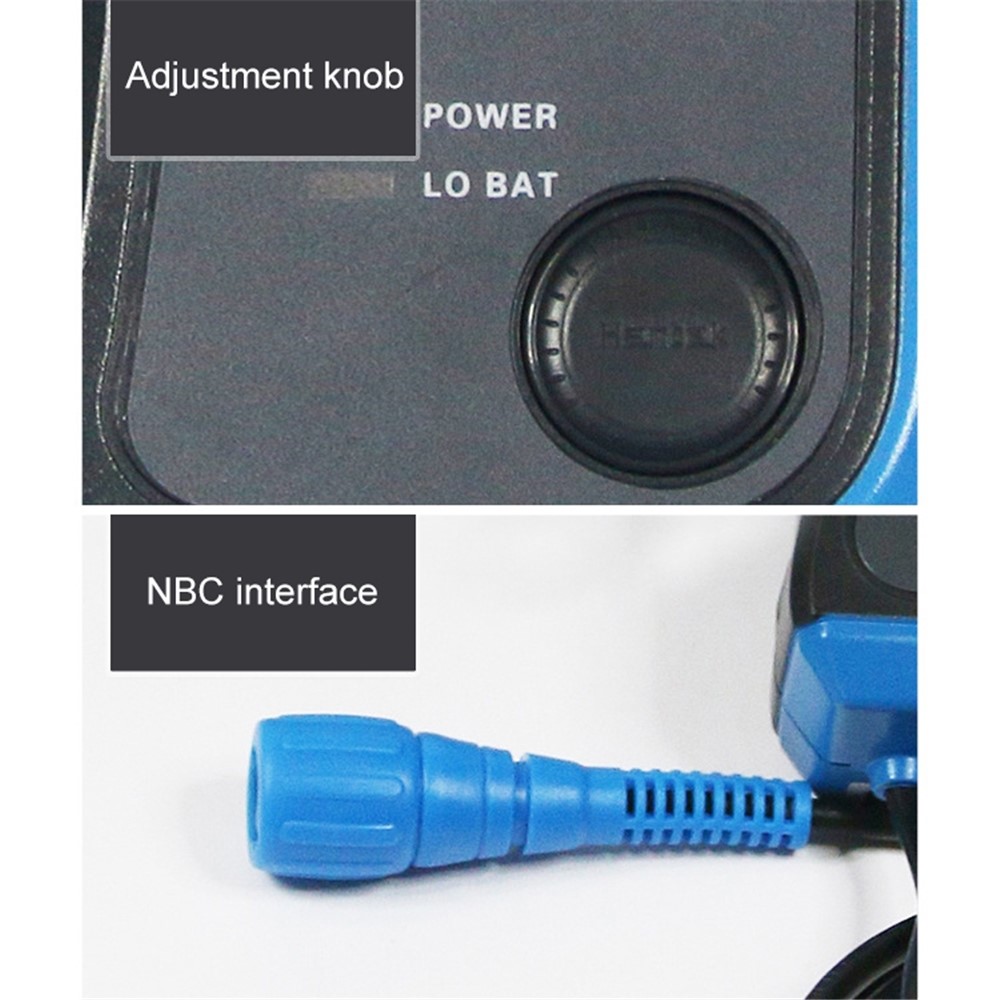

  • And if connect to an oscilloscope by BNC type connector, you are able to observe the current waveforms; If connect to a multimeter by banana type connector, you can obtain the current data
  • Application: Power circuit measurement and malfunction analysis; Motor drive of frequency converter (or other electronics) measurement; Power electronics equipment measurement

Specification:

  • Brand: Hantek
  • Size: 198*70*33mm
  • Battery: 1*9V battery (not included)

Package included:

  • 1 x AC/DC Current Clamp Meter with BNC Connector
  • 1 x English User Manual
  • Other things not included

Specifications

Brand N/A
User Manual (Language) English
Gross Weight 0.358kg
Volume Weight 0.370kg
Package Length 22.000cm
Package Width 15.000cm
Package Height 5.000cm
One Package Weight 0.320kg
With Retail Packaging Yes

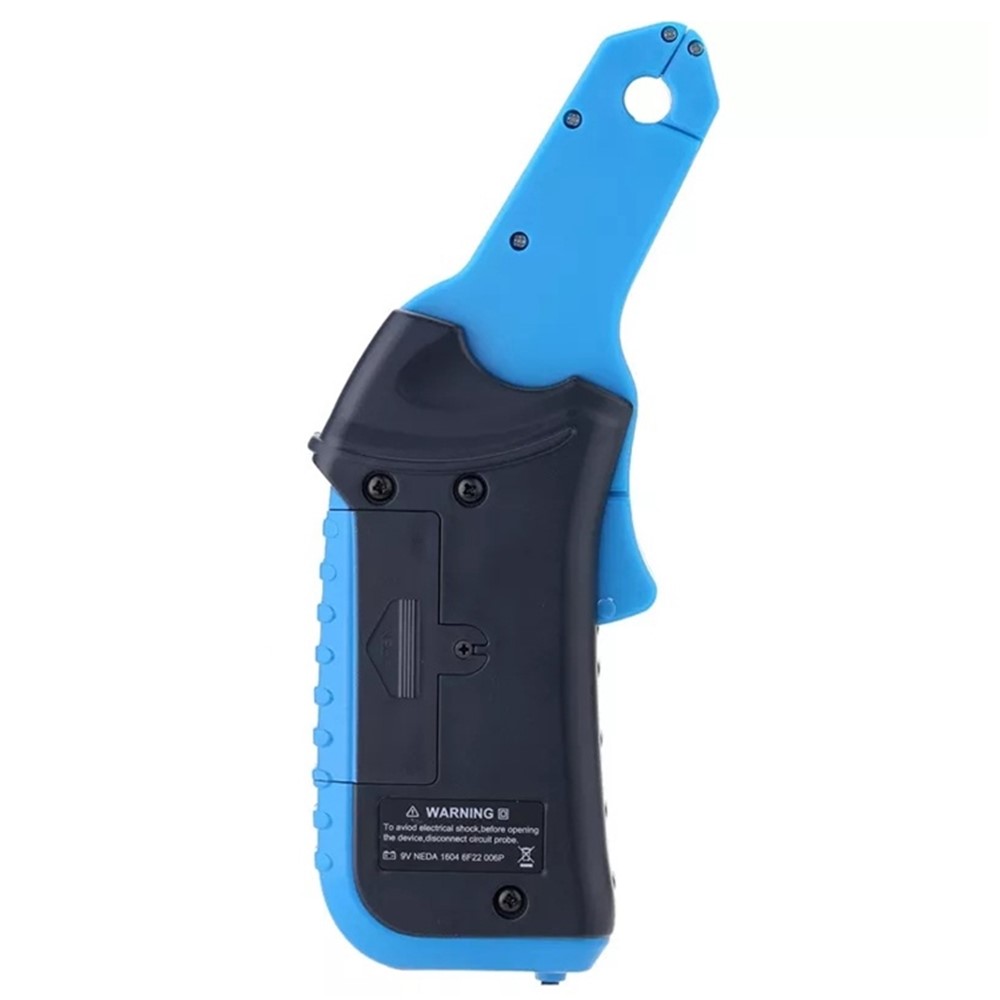

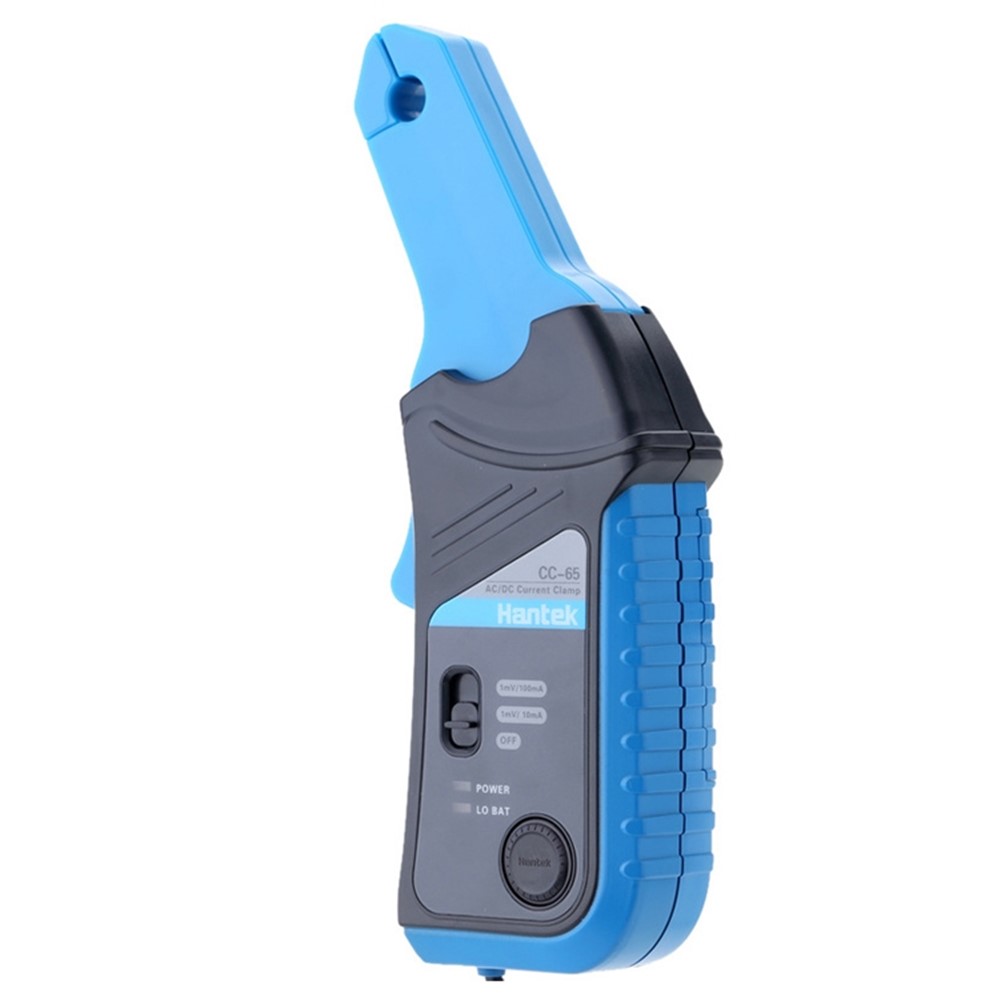

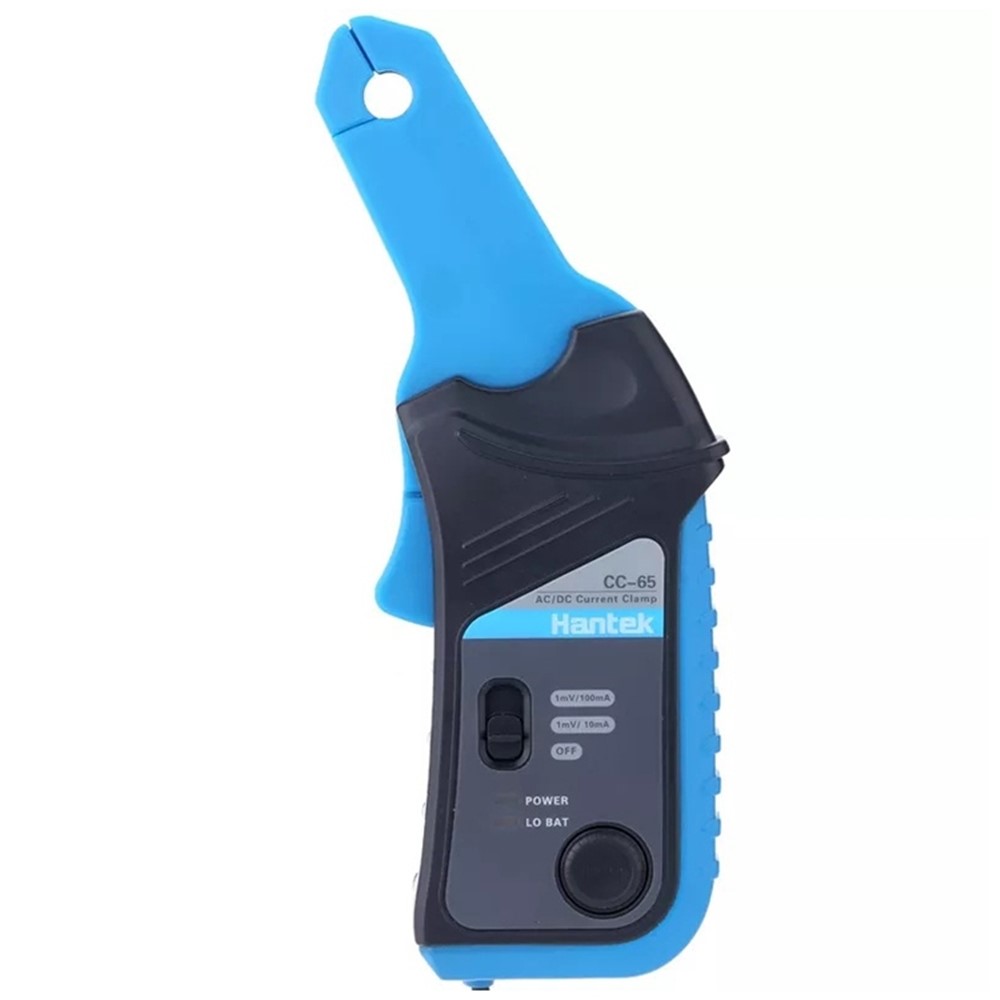

HANTEK CC-65 AC / DC Current Clamp Meter Multimeter with BNC Connector-1
HANTEK CC-65 AC / DC Current Clamp Meter Multimeter with BNC Connector-2
HANTEK CC-65 AC / DC Current Clamp Meter Multimeter with BNC Connector-3
HANTEK CC-65 AC / DC Current Clamp Meter Multimeter with BNC Connector-4
HANTEK CC-65 AC / DC Current Clamp Meter Multimeter with BNC Connector-5
HANTEK CC-65 AC / DC Current Clamp Meter Multimeter with BNC Connector-6
HANTEK CC-65 AC / DC Current Clamp Meter Multimeter with BNC Connector-7
