For just $ 8.19 , buy Handheld Digital Photo Tachometer Laser LCD Display Motor Speed Meter 2.5RPM-99,999RPM with 3pcs Reflective Tape – Dark Grey from the wholesale webshop online.

Specifications

Color Dark Grey
Gross Weight 0.141kg
Volume Weight 0.156kg
Length 15.000cm
Width 9.300cm
Height 5.000cm
Weight 0.126kg
With Retail Packaging Yes

Product Description

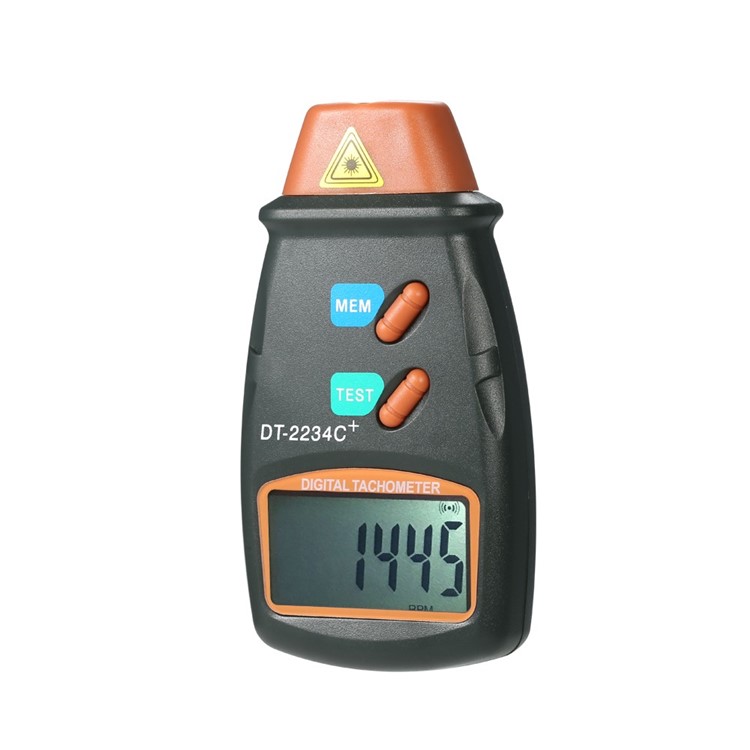

Handheld Digital Photo Tachometer Laser LCD Display Motor Speed Meter 2.5RPM-99,999RPM with 3pcs Reflective Tape – Dark Grey

This non-contact tachometer is a professional and practical motor speed meter to measure the revolutions per minute(RPM) with wide measuring range and high resolution. It's featured with high accuracy measurement, quick measuring time and long detecting distance up to 500mm(20 inch) with laser. This tachometer is very easy to use by applying a reflective tape(included 3 in package) on target object, then aim at the mark by laser beam. This tachometer has wide range of applications, such as measuring rotating speed of machine, motors, wheels, lathe for metal or wood cutting work, electrical fan, paper making, plastic industry, chemical fiber, washing machines, car making etc.

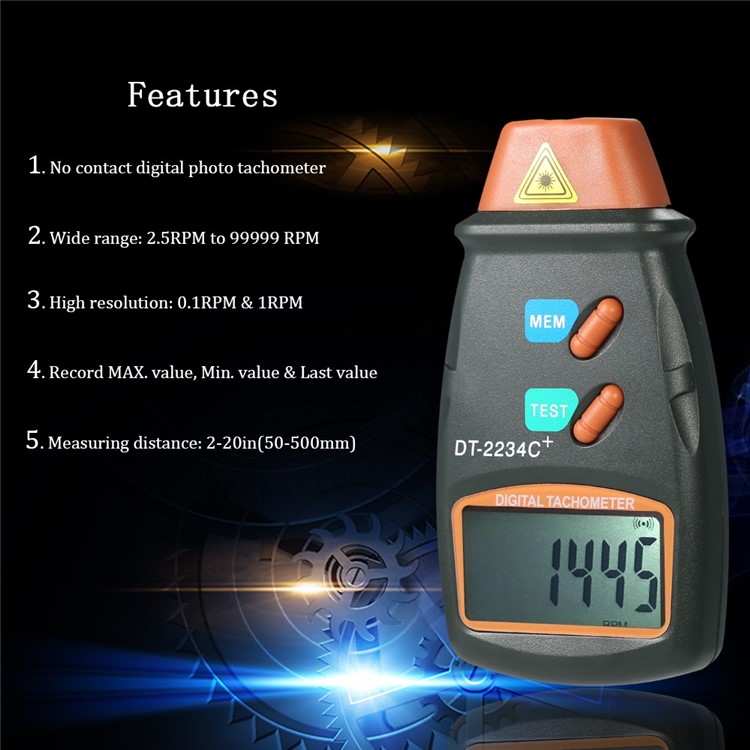

  • No-Contact handheld digital photo tachometer with stable performance

  • Wide measuring range(2.5RPM to 99999 RPM) & high resolution(0.1RPM or 1RPM)

  • Automatically record the MAX. value, Min. value and Last value with low battery indication

  • Capable of measuring at a distance from 2-20in(50-500mm) with large LCD display

  • 0.8 Second sampling time and 5-digit 18mm LCD display with non-contact RPM measurement

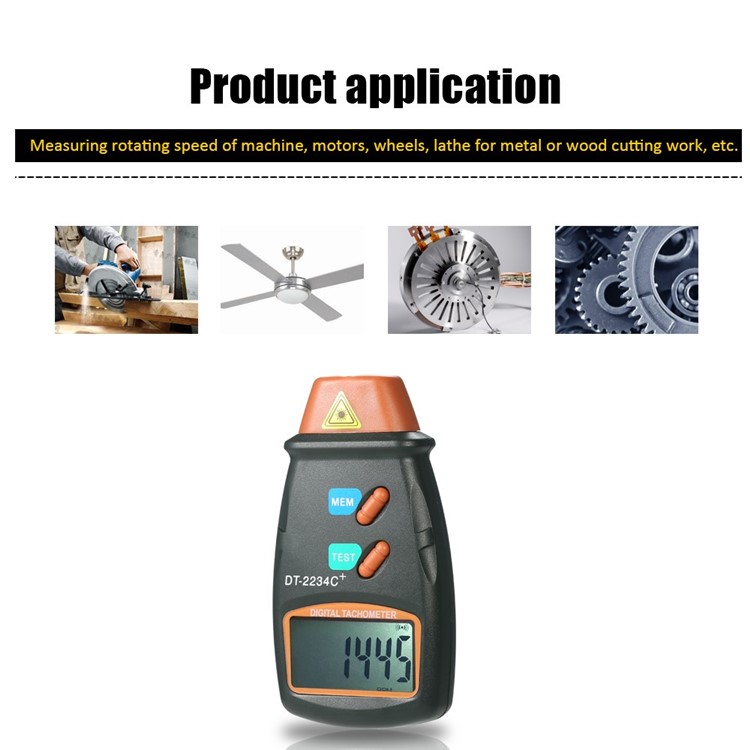

  • Wide usage: usually can be used in the field of motor, wheels, lathe for metal or wood cutting work, electrical fan, paper making, plastic industry, chemical fiber, washing machines, car making etc

Note:

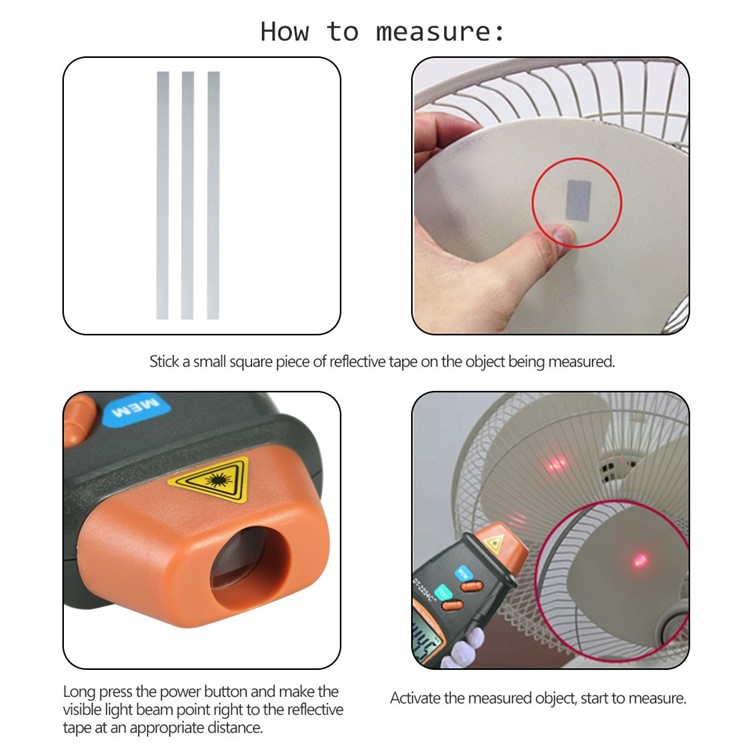

  • You must stick the reflective tape onto the target object before measuring

  • Do not point the laser beam towards eyes directly; safety eyewear is recommended

  • Do not use it near explosive gases or in other potentially explosive areas

Specification:

  • Material: ABS PLastic

  • Display: 5-digit 18mm (0.7") LCD Display

  • Measuring Range: 2.5RPM~99,999RPM

  • Resolution: 0.1RPM at 2.5-999.9RPM, 1RPM at 1000-99,999RPM

  • Accuracy: ±(0.05%+1 digit)

  • Measuring Distance: 50-500mm / 2-20in

  • Time Base: 6MHz Crystal Oscillator

  • Test Range Select: Automatic Switching

  • Sampling Time: 0.8s(over 60RPM)

  • Function: Display Last Value, MAX. Value, Min. Value

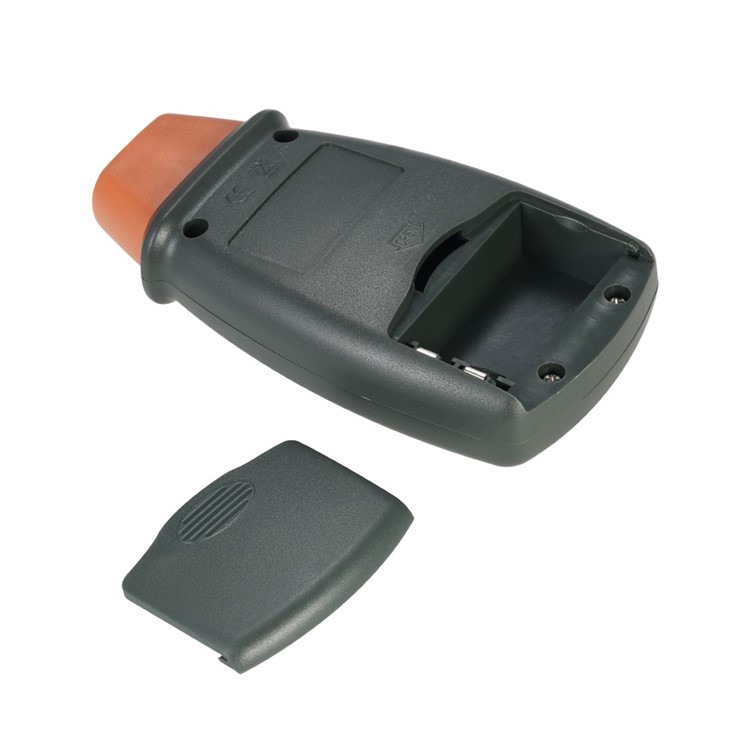

  • Power Supply: 1 * 9V 6F22 Battery(NOT Included)

  • Power Consumption: Approx. 30mA

  • Working Temperature: 0℃-50℃(32℉-122℉)

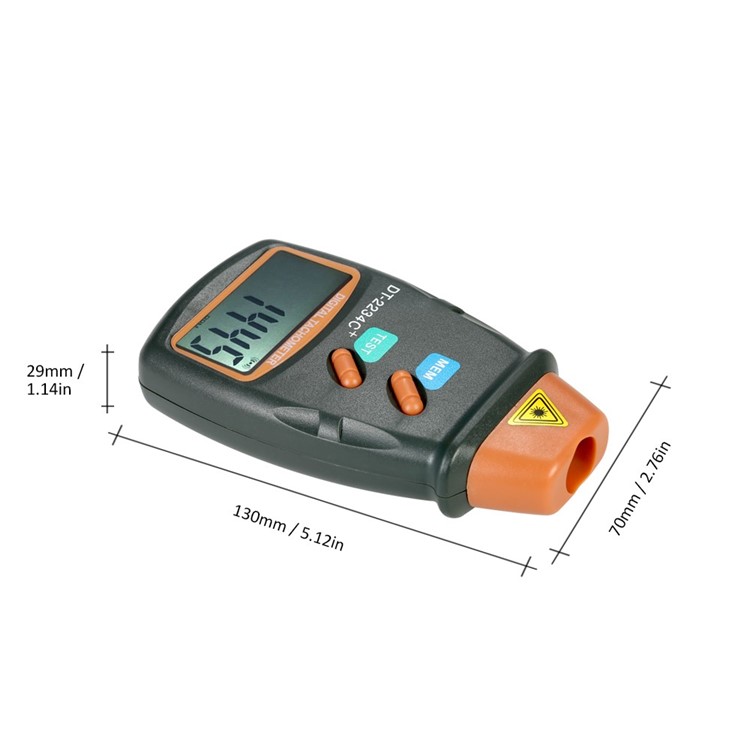

  • Product Size: 130x70x29mm / 5.12×2.76×1.14in

  • Product Weight: 79g / 2.80oz

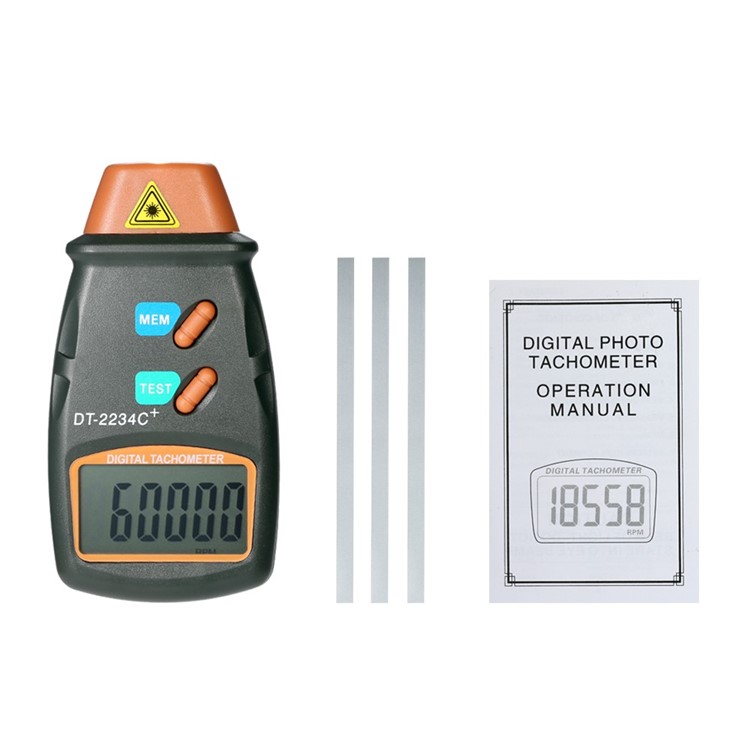

Package included:

  • 1 x Digital Tachometer
  • 3 x Reflective Tape Marks
  • 1 x English User Manual
TP10310301825A-1
TP10310301825A-2
TP10310301825A-3
TP10310301825A-4
TP10310301825A-5

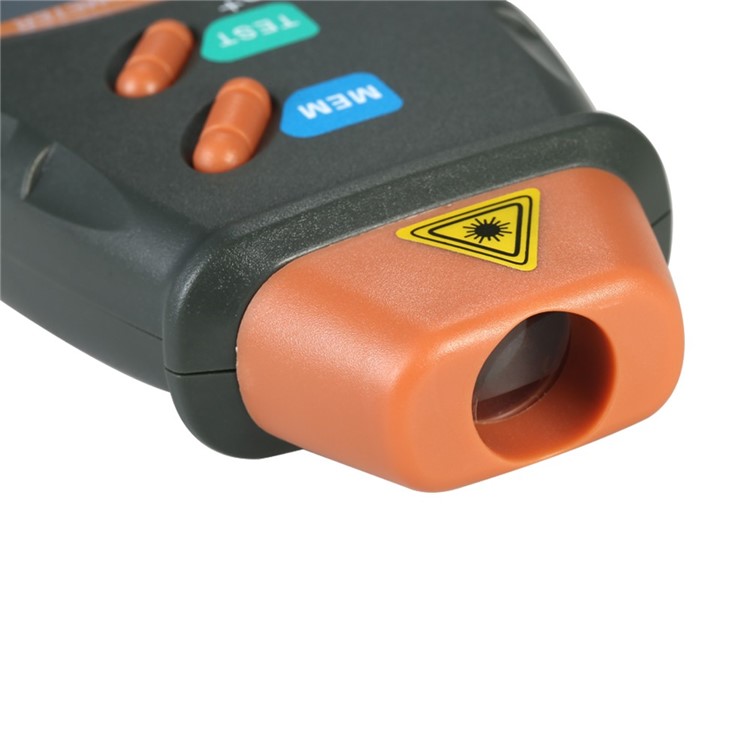

TP10310301825A-6
TP10310301825A-7
TP10310301825A-8
TP10310301825A-9
TP10310301825A-10

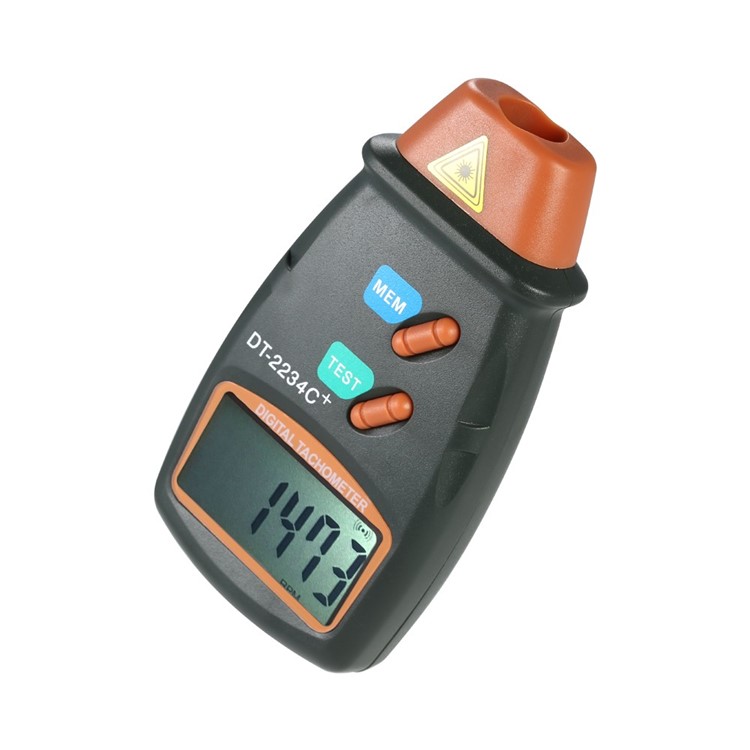

TP10310301825A-11
