For just $ 11.21 , buy DC 12V 24V 4-20mA Signal Source Signal Generator Constant Current 0.01mA from the wholesale webshop online.

Specifications

Gross Weight 0.073kg
Volume Weight 0.075kg
Length 12.000cm
Width 7.000cm
Height 4.000cm
Weight 0.066kg
With Retail Packaging No

Product Description

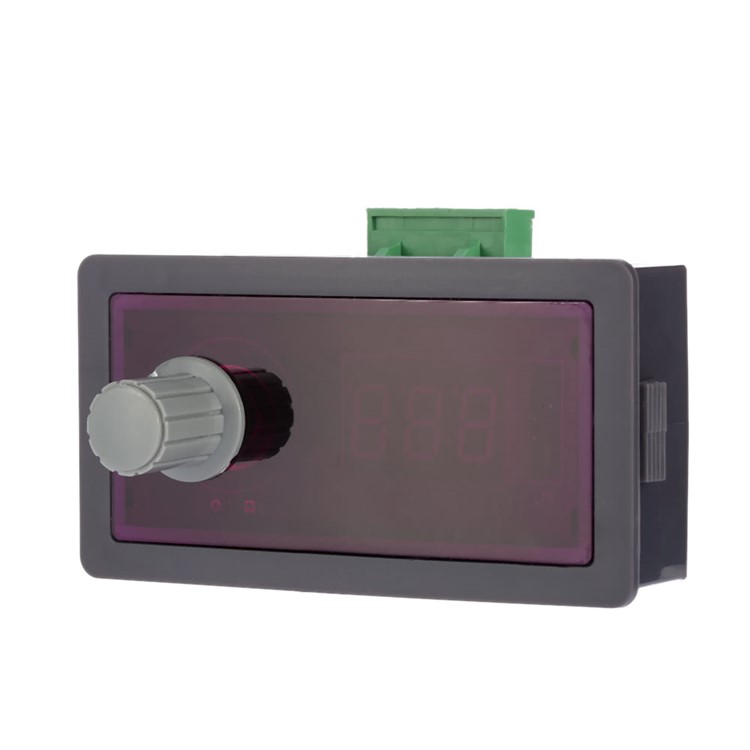

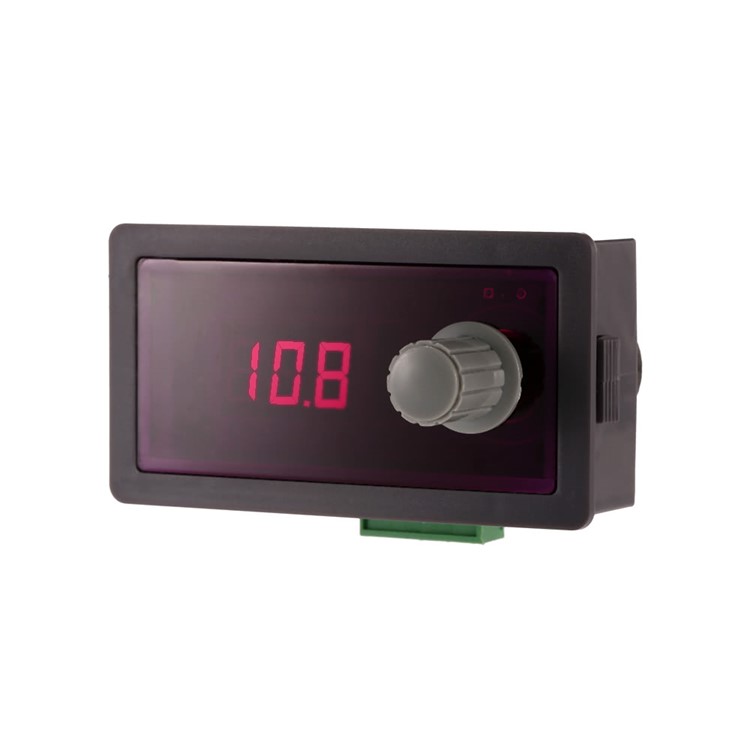

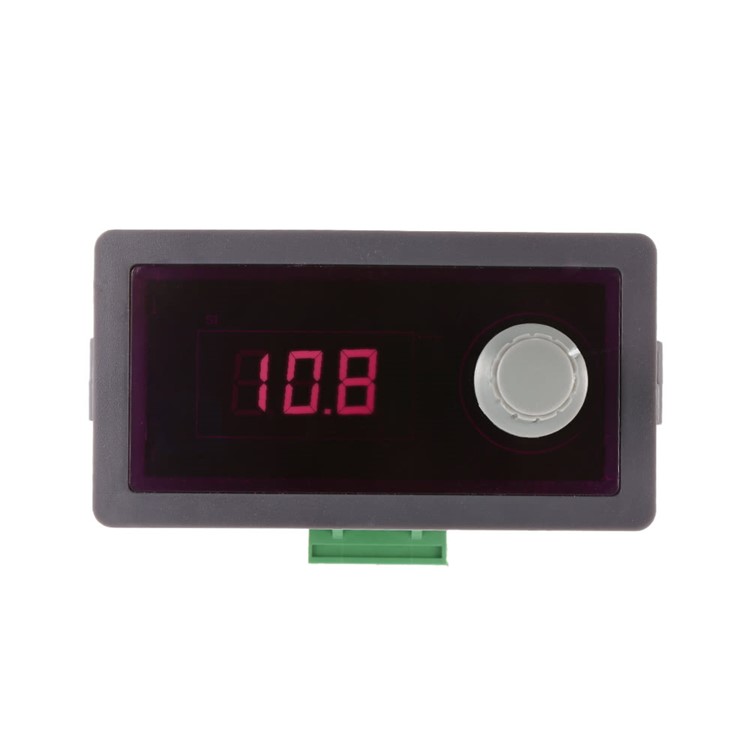

DC 12V 24V 4-20mA Signal Source Signal Generator Constant Current 0.01mA

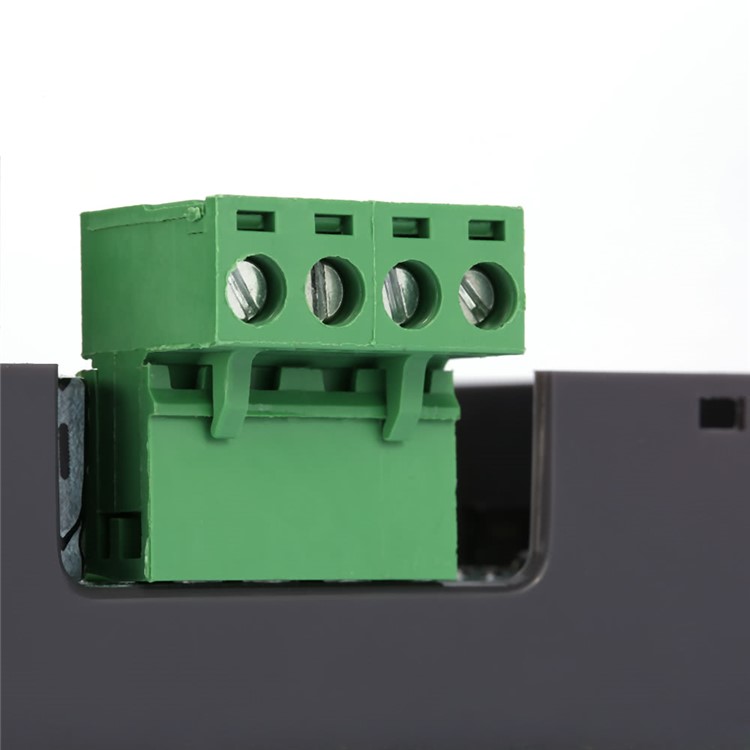

  • Easy to connect wire and use, knob operation

  • In response to the output immediately after adjustment, no delay

  • Adjust the actual fineness of up to 0.01mA, operate freely

  • With polarity protection, power reverse does not work, do not burn components

  • Power supply voltage: 12V DC or 24V (tolerance ± 25%), Total power <1W

  • Output load impedance range between 0-350 ohms(DC 12V); 0-800 ohms(DC 24V)

  • Can be used: signal sources, regulating valves, test instrumentation, light emitting diode test, the inverter output analog transmitter

Specification:

  • Power Supply: DC 12V/24V

  • Total Power: <1W

  • Output: 4-20mA

  • Output Load Impedance: 0-350 ohms(DC 12V); 0-800 ohms(DC 24V)

  • Overall Size: 80x42mm

  • Weight: 55g / 1.94oz

Package included:

  • 1 x Signal Generator
