Price:
$ 9.87

Free Shipping

For just $ 9.87 , buy Car GPS Signal Antenna Amplifier Booster with GPS Receiver + Transmitter 30DB for Phone Navigator from the wholesale webshop online.

Specifications

Gross Weight 0.166kg
Volume Weight 0.114kg
Package Length 13.000cm
Package Width 13.000cm
Package Height 3.000cm
Package Weight 0.148kg
With Retail Packaging No

Product Description

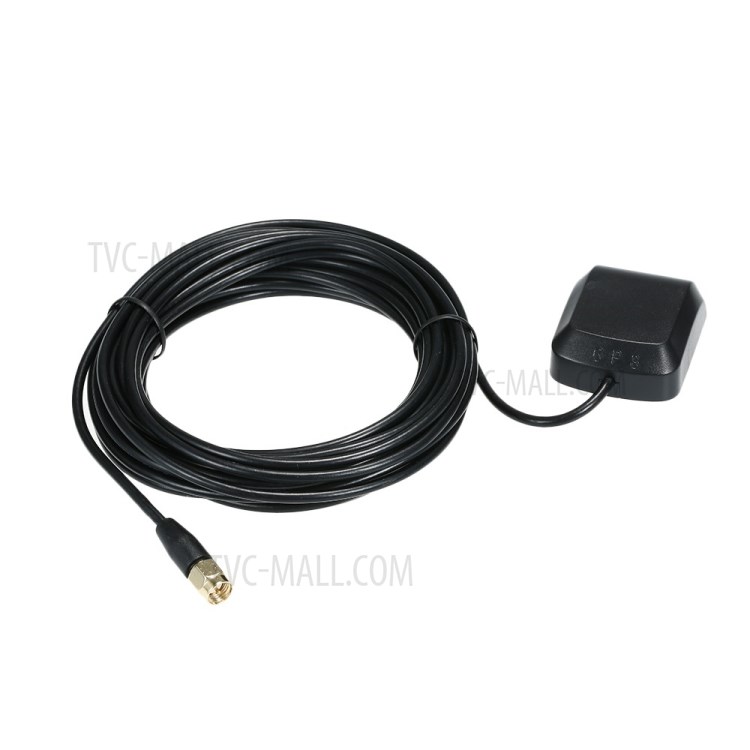

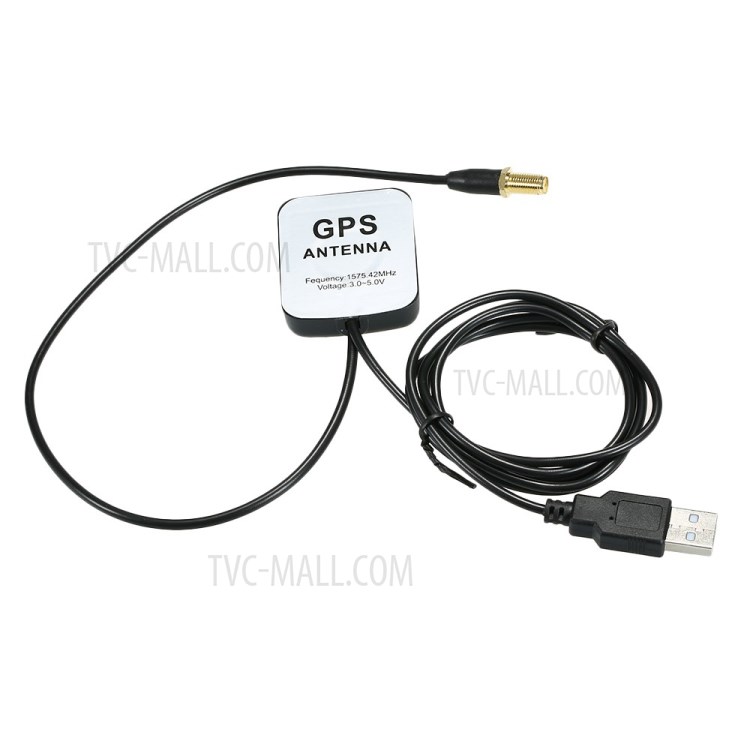

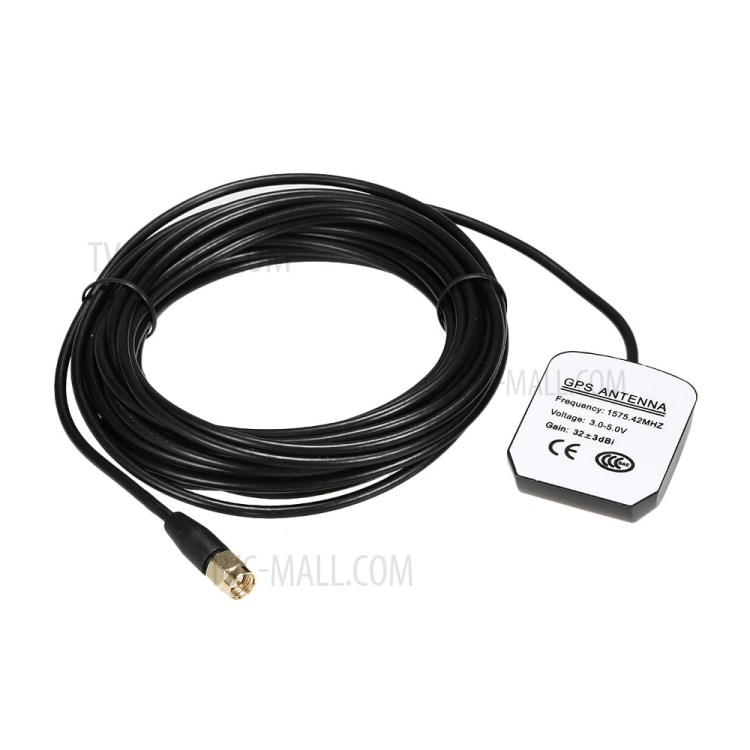

Car GPS Signal Antenna Amplifier Booster with GPS Receiver + Transmitter 30DB for Phone Navigator

The antennas contains a high performance GPS patch antenna and a high tech low noise amplifier. Provides excellent signal amplification and out-band-rejection for the receiver.

  • Using dedicated filters for efficient signal transmission and high precision

  • It adopts dual LNA two-stage amplifier, which has good signal strength and supports multiple devices at the same time. The broadband input is 1575-1602MHz

  • USB port GPS receiver, can be used for common smart mobile phone, laptop, desktop computer, tablet  PC, etc.

  • Easy installation, simple operation, only the relevant interface is plugged, turn on the power

  • With magnetic mounting base

Specifications:

  • Center Frequency: 1575.42MHZ±1MHZ

  • Bandwidth: 10MHZ

  • Input Impendence: 50Ω

  • V.S.W.R: ≤1.5

  • Consumption Electric: <10mA

  • Polarization Intensity: R.H.C.P

  • Supply Voltage: DC3.3~5.0V

  • The Sound Coefficient: ≤1.5dB

  • Axial Ratio: 3Db

  • Gain (dBi): 29dB±3dB(LNA)

  • Max. Input Power: 5W

  • VSWE(Output VSWE): ≤1.8

  • Operating Temperature -40 Celsius degree ~ +85 Celsius degree

  • Storing Temperature -40 ~Celsius degree + 90 Celsius degree

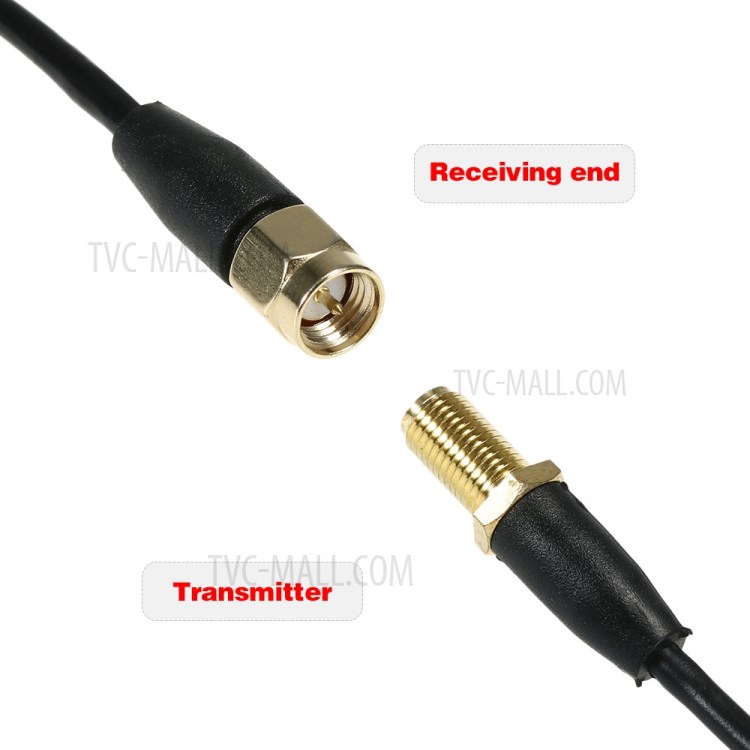

  • Cable Length: Approxi. 5M/15FT(receiver part) + 1M/3FT(transmitter part)

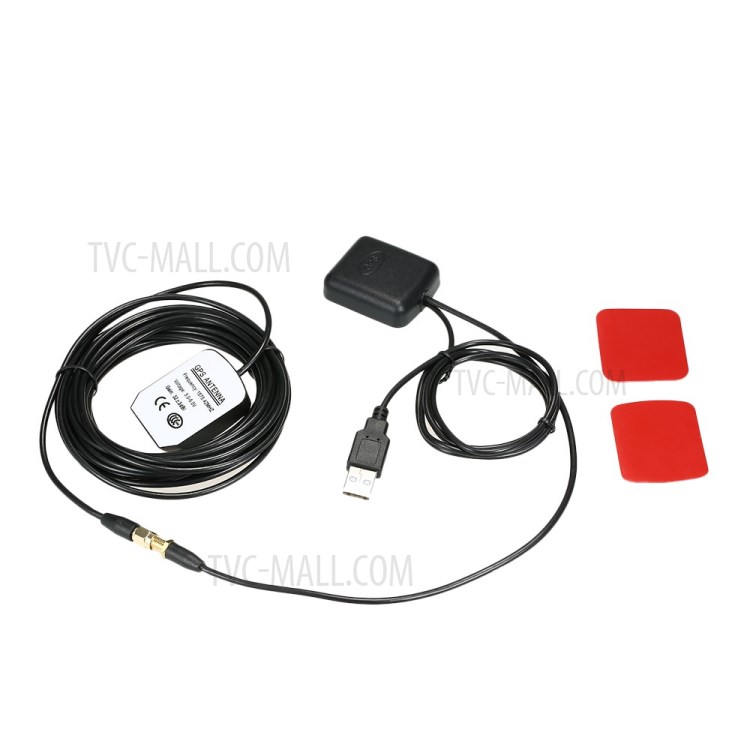

Package included:

  • 1 x Antenna Transmitter
  • 1 x Receiver
  • 2 x Adhesive Stickers
