Price:
$ 5.35

Free Shipping

For just $ 5.35 , buy Branches Parallel Connect 3-Branch Electrical Solar 30A 1000V MC4 Y Panel Cable Coupler Combiner from the wholesale webshop online.

Specifications

Gross Weight 0.151kg
Volume Weight 0.065kg
Length 12.000cm
Width 8.000cm
Height 3.000cm
Weight 0.135kg
With Retail Packaging No

Product Description

Branches Parallel Connect 3-Branch Electrical Solar 30A 1000V MC4 Y Panel Cable Coupler Combiner

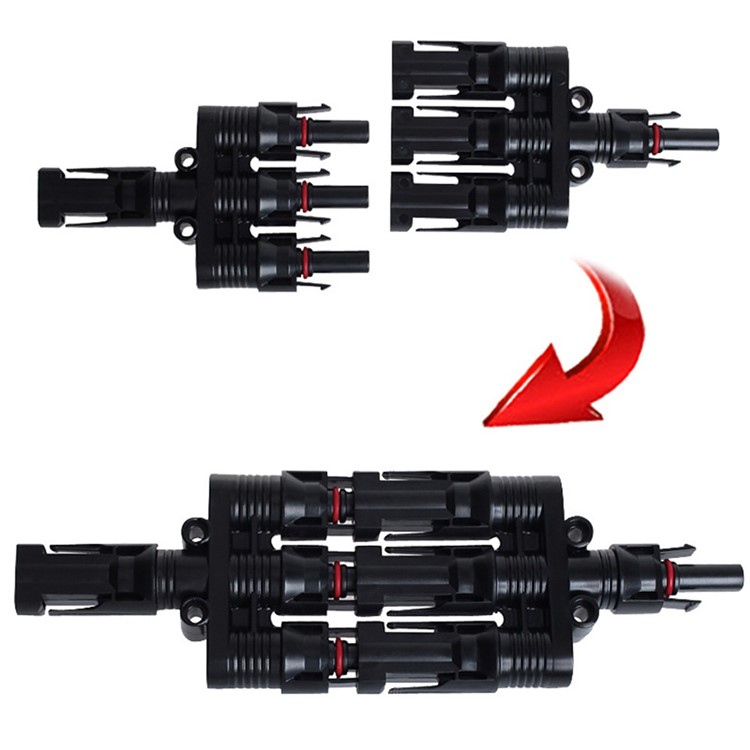

  • Provides a quick and easy parallel wiring solution for solar panels

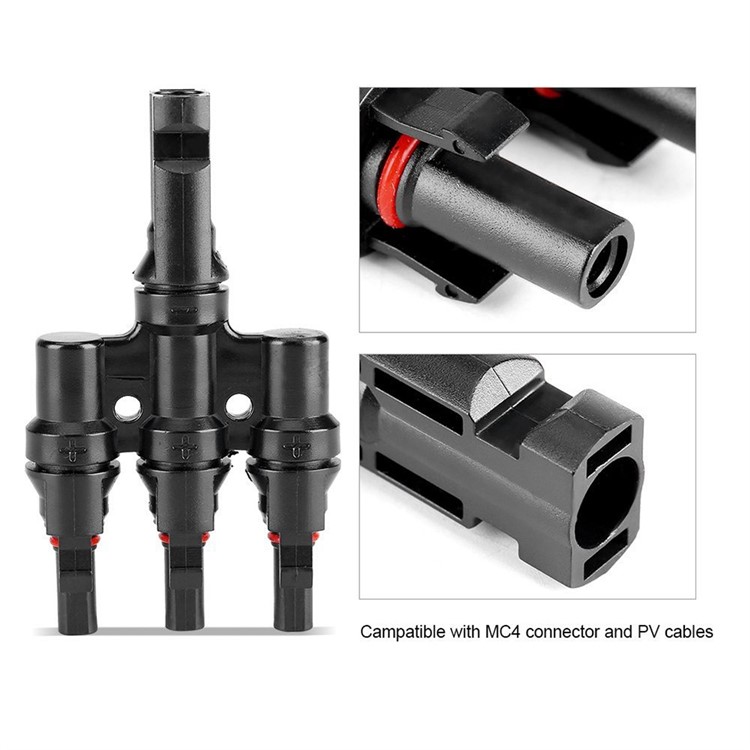

  • Compatible with all MC4 solar connectors

  • Easy to install, reusable with a long using time

  • Dustproof, IP67 waterproof, won't be worn out easily

  • With excellent aging and UV resistance

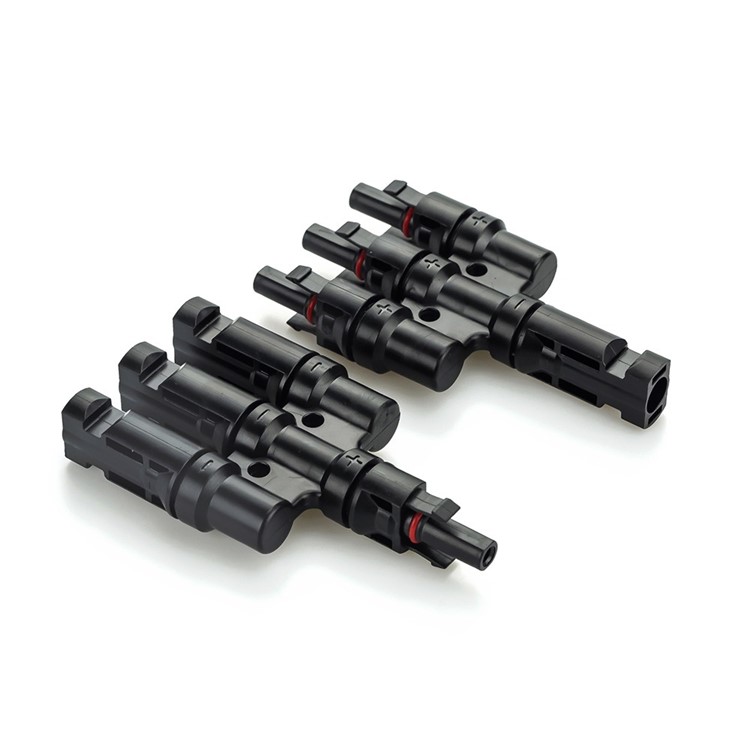

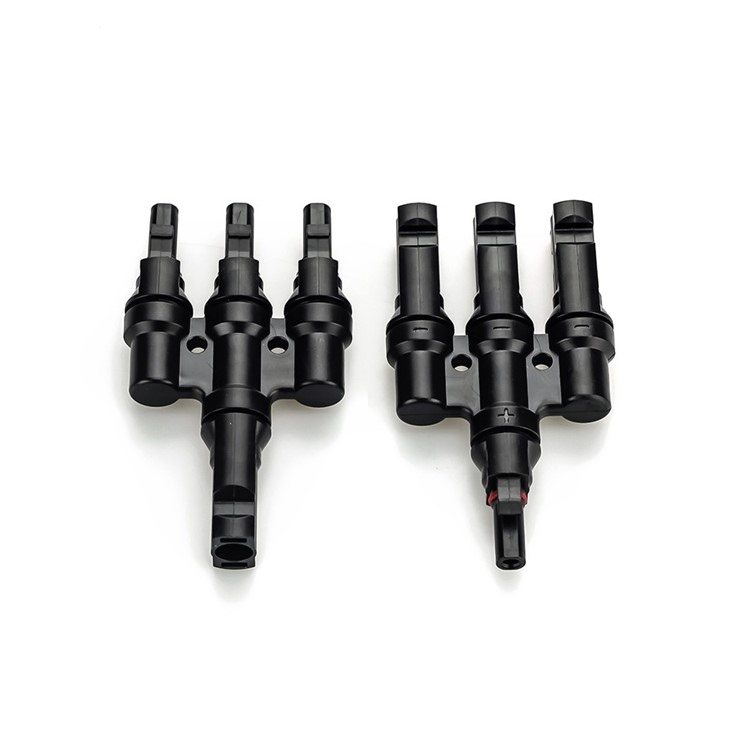

  • 1 Male to 3 Female(M/3F) and 1 Female to 3 Male(F/3M)

  • Load capability with big current up to 30A and high voltage up to DC1000V

Specifications:

  • Rated voltage: TUV 1000V DC / UL 600V DC

  • Rating current: 20A-30A

  • Pin dimension: 4.0mm

  • Proof voltage: DC 8KV(1Min)

  • Pollution degree: 2

  • Protection class: Class II

  • Contact material: Tinned Brass

  • Connector material: PPO

  • Contact resistance: 5mW

  • Degree of protection: IP67

  • Withdrawal force: 50N

  • Insertion force: 50N

  • Flame class: UL94V-0

  • Temperature Range: -40 ~ +90℃

  • Item weight: 122.5g / 4.32oz

  • Package weight: 130g / 4.59oz

  • Item size: 10.2 x 6 x 1.9cm / 4.17 x 2.36 x 0.75in

Package included:

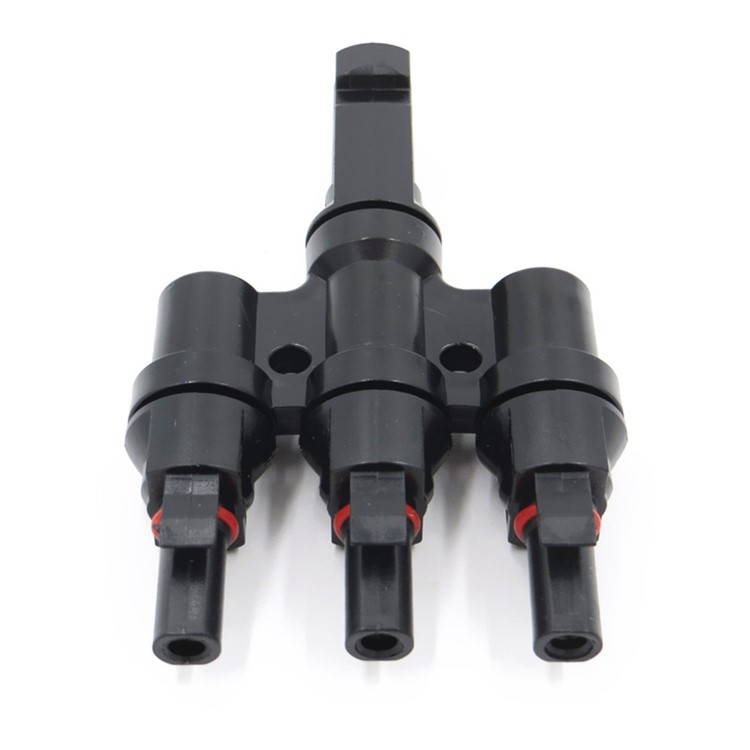

  • 1 x MC4 Branch 3M/1F

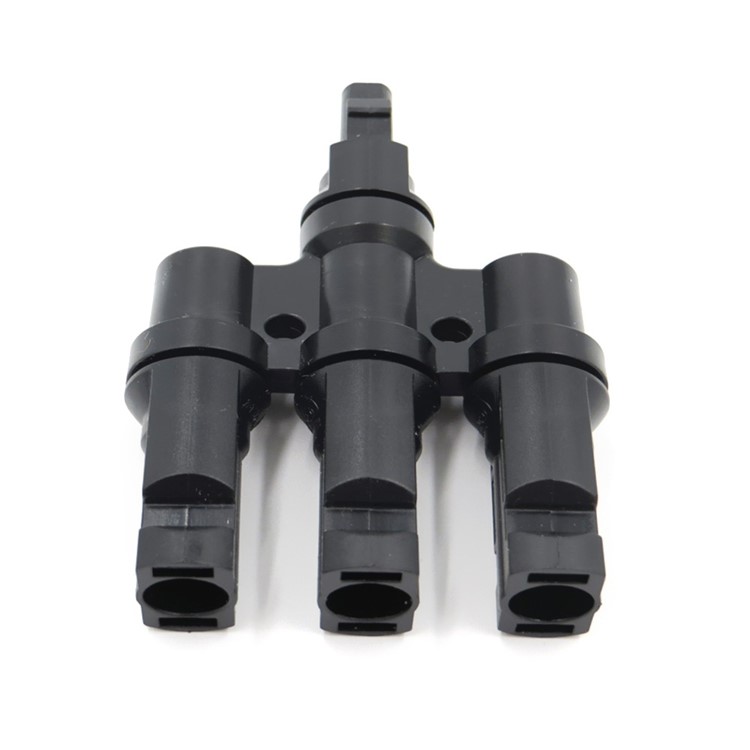

  • 1 x MC4 Branch 3F/1M
