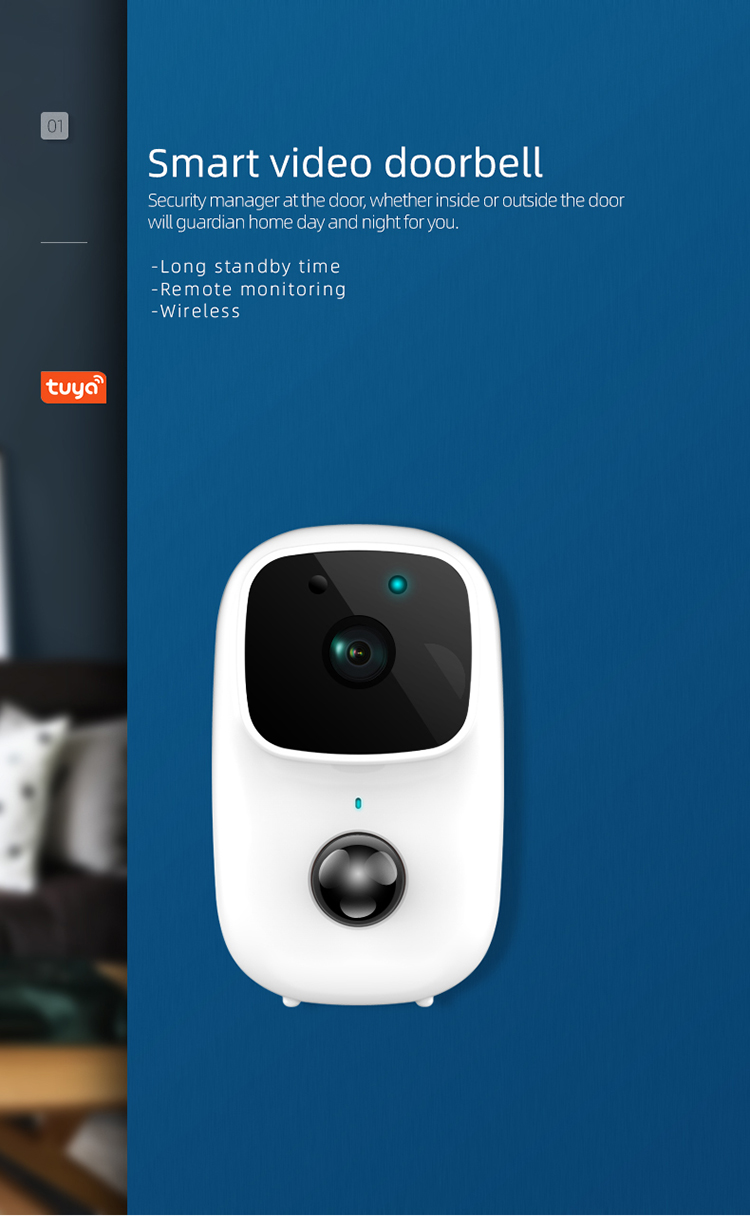

B90 Wireless WiFi Smart Video Doorbell Camera PIR Night Vision Visual Recording Security Door Bell Monitor

• Eight interactive technologies, including HD night vision, doorbell monitoring, mobile phone/WiFi interconnection, video talk-back, etc

• It can provide multiple user experience

• 24H monitoring. When visitors ring the doorbell, the device automatically captures and saves the video, The records can be queried through the app on mobile phone

• When people stay in front of the door for 5 seconds, it will alert the phone

• 170 degree wide viewing angle, almost no dark angle outside the door

Specification:

• Model: B90

• Main Control + WIFI Module: T31ZL+CYW43438_A1

WiFi:

• Transmitting Power: 11b: 17dBm

• Receiving Sensitivity: (11Mbps) -82dBm

Camera:

• Sensor: JX-F37

• Pixel: 2MP

• Viewing Angle: 170° Diagonal

• HDR: Yes

• WDR: No

• Resolution: HD 1928H X 1088V SD 640H X 360V

• Image Recognition (Distinguish Between People and Animals): No

• Video Codec Standard: H264

FPS:

• Daytime: 15fpc

• Night: 15fps

Infrared Night Vision:

• Number Of Lights: 6x 5mm Infrared Lights

• Judging the realization principle of day and night: Photodiode

• Detection Distance: 5m/16.4ft

Human Detection:

• Realization Principle: PIR

• Sensitivity Adjustable On the APP

• Divided Into High, Medium And Low Grade

• High Sensitivity, Farthest Detection Distance

• Mid PIR Sensitivity, Moderate Detection Distance

• Low PIR Sensitivity, Short Detection Distance

• Detection distance: To be determined

Power Consumption:

• 10 times ring a day, 25 seconds each time

• Standby mode current: To be determined

• Working current (night vision + video): 200mA during the day, 300mA at night

Sound:

• Number of microphone: 1

• Microphone: -38dB

• Speaker: 1524 speakers L100 2P 1.25 terminals dual magnetic 1W 8ohms

• Echo Cancellation: Yes

Powered By:

• Low Voltage AC (18V-24V): No

• Battery Power Supply: 3.7V 2x 18650 Lithium Batteries(not included)

• USB Power Supply: 5V

• Power Monitoring Function: Yes

Store:

• TF card slot: Yes

• TF card size detection: Yes

• Data storage in the cloud: support (platform fee)

Wake up:

• Key to wake up: NO

• PIR wake up: support

• Phone wake up: support

• Information push interval: within 600ms

• Number of devices to share: unlimited

• Number of mobile phones that can be online at the same time: 4

• Anti-Dismantle Alarm: No

• Waterproof and Dustproof Rating: IP65

• Working Temperature: -20~60°C

• Protection Circuit: Overshoot and Overdischarge, Anti-Battery Reverse Connection, etc

Smart Speaker Interaction:

• Communication with Alexa: YES

• Communication with Google: YES
