For just $ 26.29 , buy 601 HVLP 1.4mm 1.7mm 2.0mm Nozzle Air Spray Gun Gravity Feed Paint Sprayer Auto Car Detail Painting Air Brush Set from the wholesale webshop online.


Gross Weight 1.191kg
Volume Weight 0.953kg
Length 22.500cm
Width 14.000cm
Height 13.500cm
Weight 1.063kg
With Retail Packaging No

Product Description

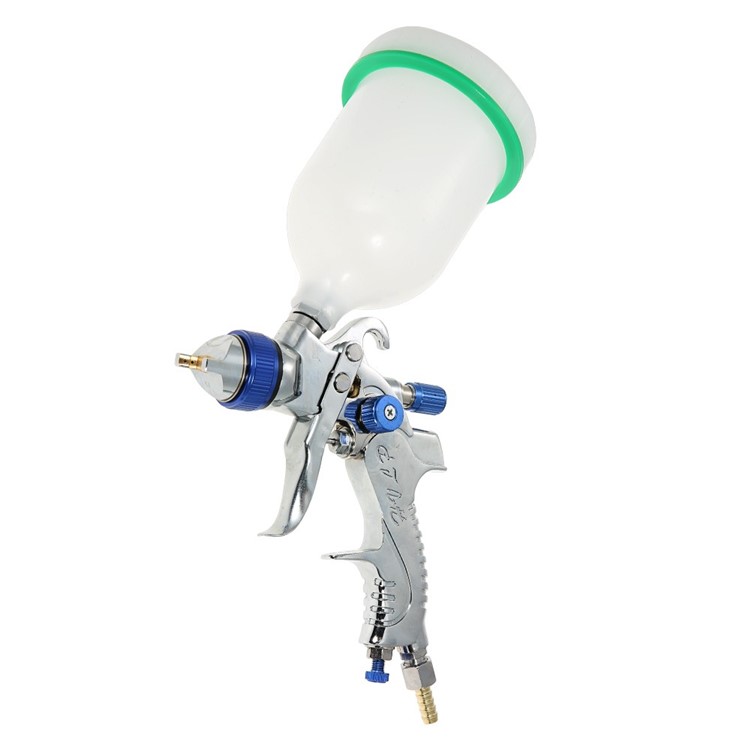

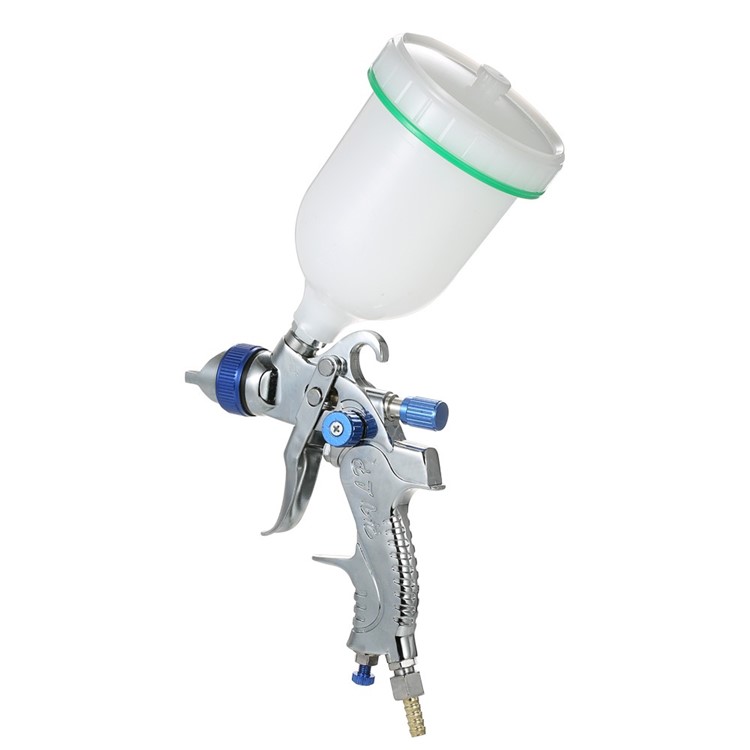

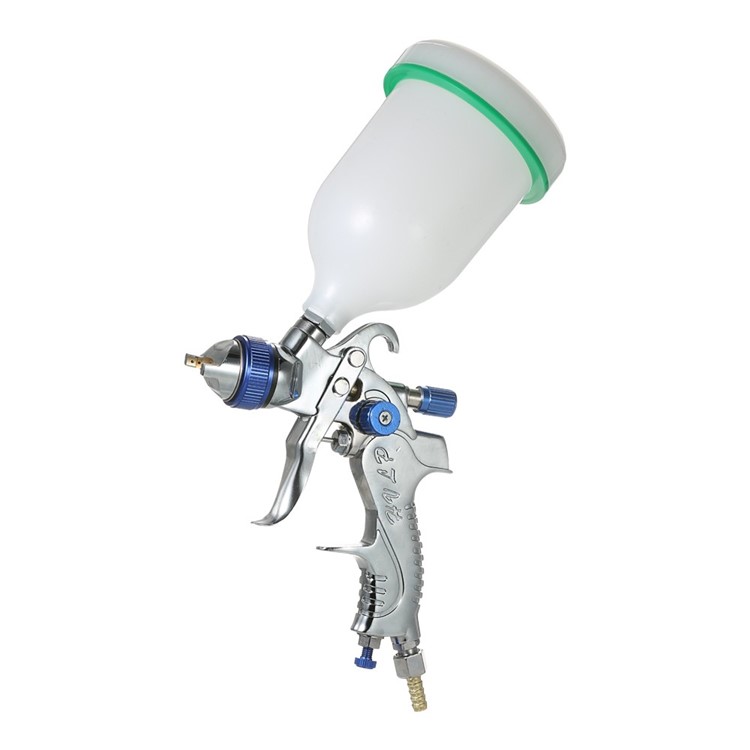

601 HVLP 1.4mm 1.7mm 2.0mm Nozzle Air Spray Gun Gravity Feed Paint Sprayer Auto Car Detail Painting Air Brush Set

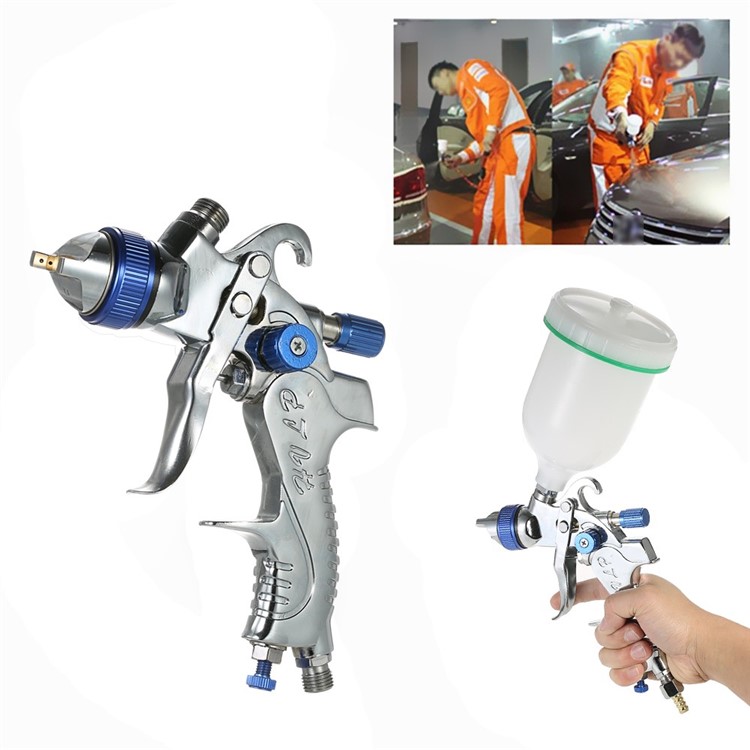

This professional 601 HVLP spray gun is excellent for detail work with gravity feed type. With 3PCS stainless steel fluid needle and nozzle(1.4mm/1.7mm/2.0mm), this versatile spray gun can handle water-based paint and dilute solvent-based paint. The in-built regulator ensures that you get the perfect flow of paint every time. This optimized flow rate means your operating costs will be reduced – no more wasted paint.

  • HVLP Type & High Atomisation with Low Nozzle Air Pressure: Saves paint and protects the environment

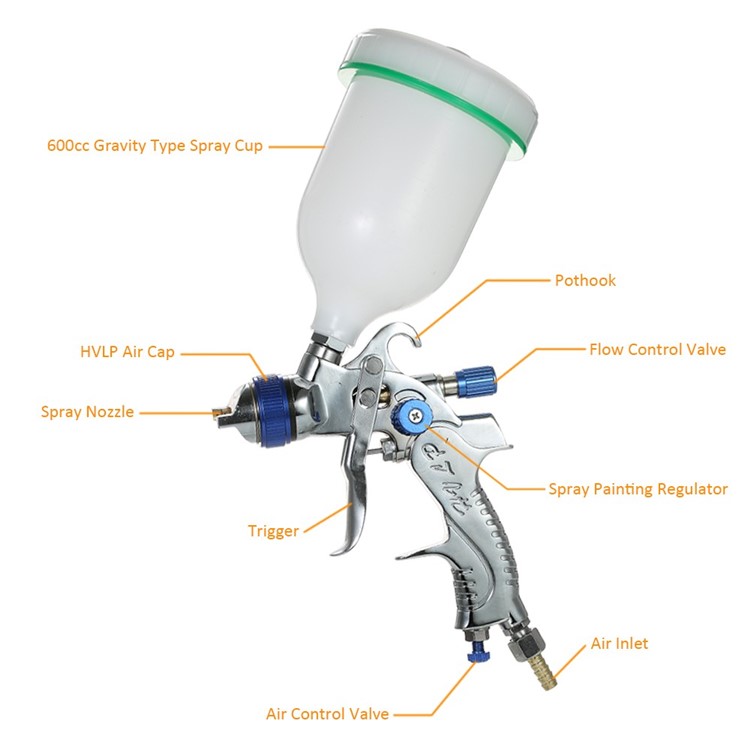

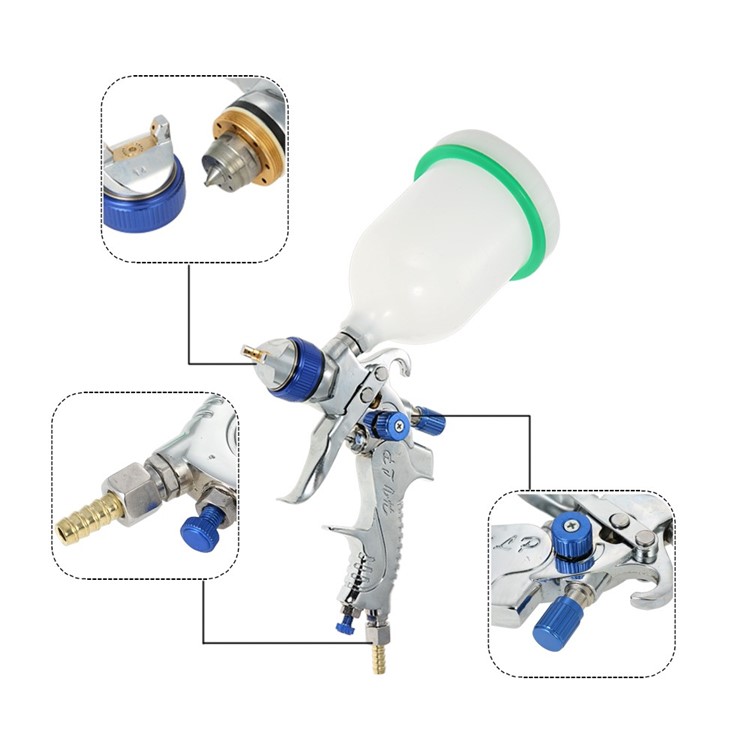

  • With 3 Built-in Control Knobs: Fluid control regulates amount of paint sprayed, Pattern control adjusts the fan pattern size, and air adjustment valve provides versatility to adjust air flow

  • Multi-purpose Precision Airbrush: With 3pcs stainless steel fluid needle and nozzle (1.4mm/1.7mm/2.0mm), corrosion resistant

  • Large Capacity of 600ml Feed Cup: Can meet different needs of nice and effective spraying

  • Superior Quality Spray Gun: Better than 75% transfer efficiency with less than 10% psi output pressure and complies with environmental regulations

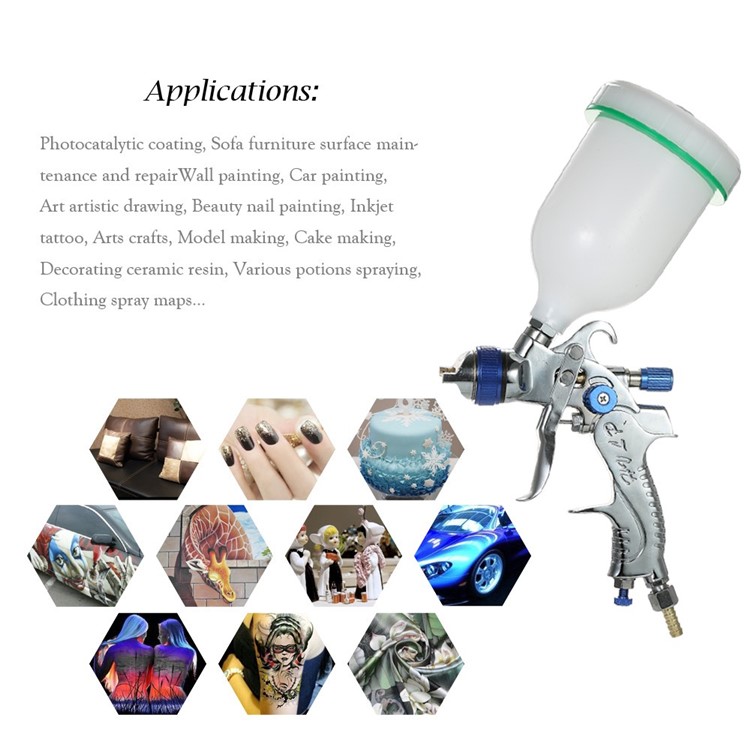

  • Wide Range of Applications: Widely used in industrial products paint coating,  furniture painting, wall painting, cars painting, factory spray paint


  • Material: Aluminum + Copper + PVC

  • Nozzle Material: Stainless Steel

  • Feed Type: Gravity Feed

  • Application: Paint Spray Gun

  • Type: HVLP

  • Power Type: Pneumatic

  • Nozzle Diameter: 1.4mm, 1.7mm, 2.0mm

  • Atomizing Air Pressure: 0.35Mpa

  • Spraying Distance: 180-230mm

  • Best Spraying Distance: 200mm / 7.87in

  • Spray Width Size: 200-250mm

  • Inlet Interface: Standard 1/4"-19" BSP/NPT Thread

  • Air Consumption: 7.5/8.8/10CFM

  • Fluid Output: 70-140ml/minute

  • Air Hose(ID): 3/8"

  • Standard Working Pressure: 35-45PSI

  • Compressor Required: 2-3HP

  • Spray Control: External Control

  • Cup Capacity: 600ml

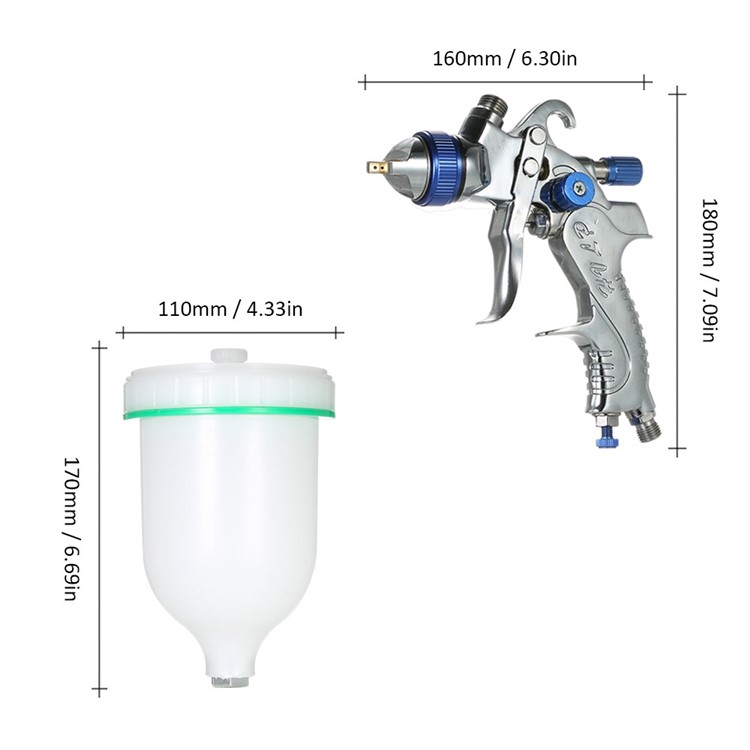

  • Size of Spray Gun: Approx.160 * 40 * 180mm / 6.30 * 1.57 * 7.09in

  • Size of the Cup: 170 * 110mm / 6.69 * 4.33in (H * D)

  • Item Weight: Approx.630g / 22.21oz (With Cup)

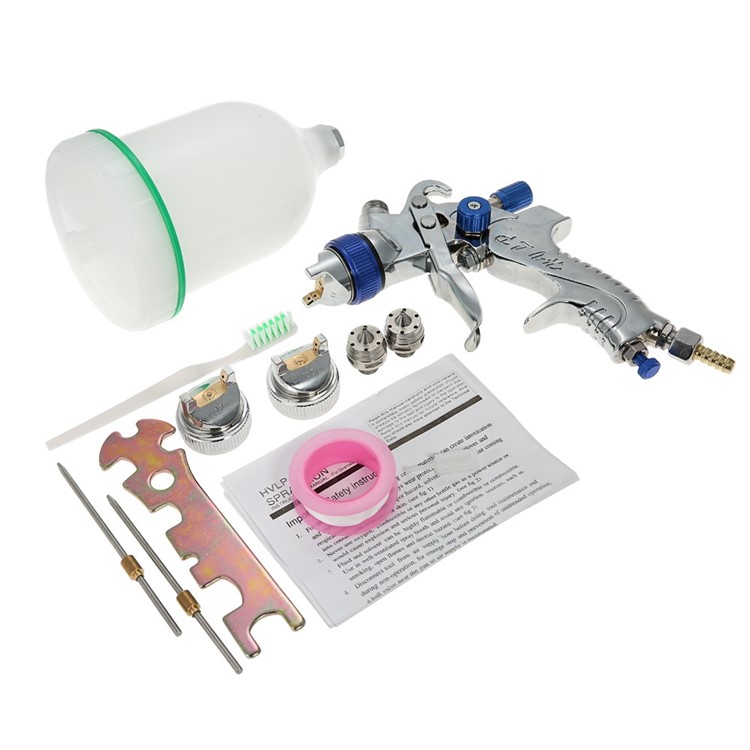

Package included:

  • 1 x 1.4mm Spray Gun
  • 1 x 1.7mm Spray Nozzle and Needle
  • 1 x 2.0mm Spray Nozzle and Needle
  • 1 x 600ml Cup
  • 1 x Paint Filter
  • 1 x Inlet Joint
  • 1 x Brush
  • 1 x Wrench
  • 1 x User Manual
