For just $10.59 , buy 2MHz-700MHZ 3W RF Power Amplifier Board Broadband for HF VHF UHF FM Transmitter Radio from the wholesale webshop online.

Product Description

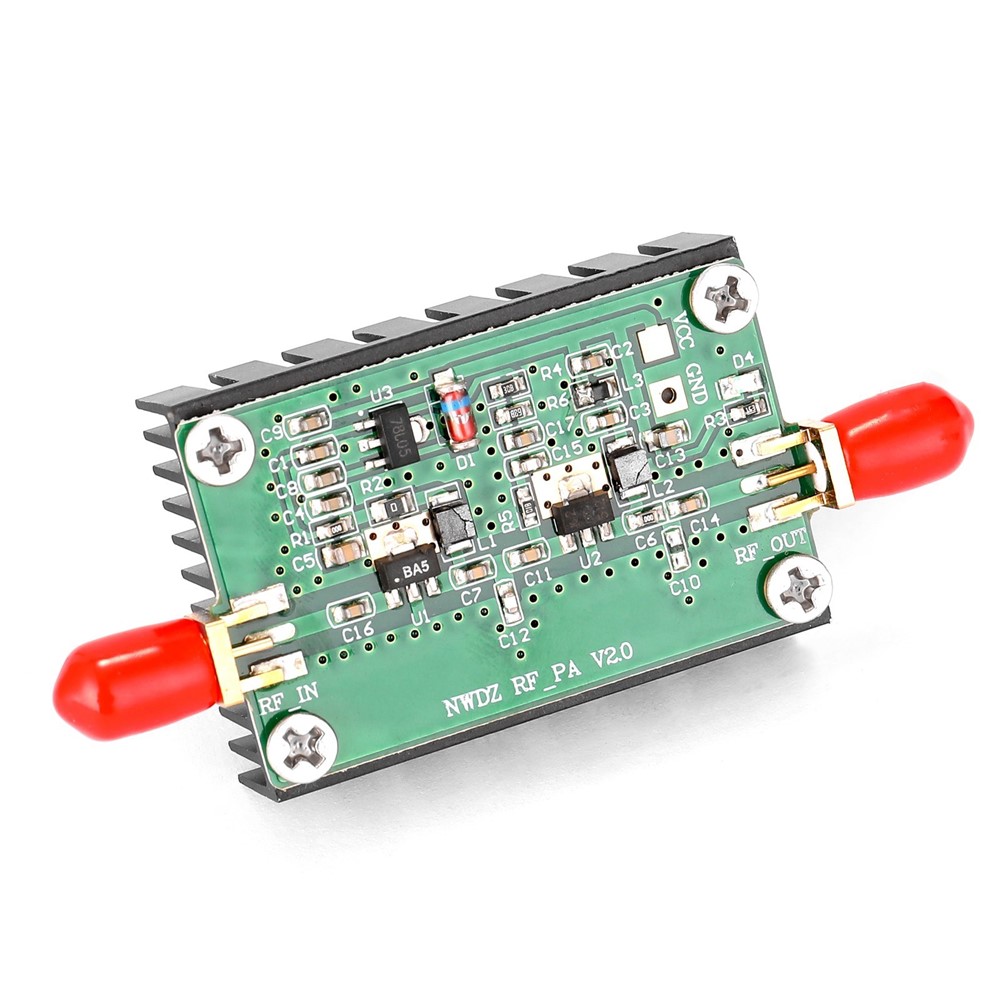

2MHz-700MHZ 3W RF Power Amplifier Board Broadband for HF VHF UHF FM Transmitter Radio

This is a kind of quality RF power amplifier, 34.8dbm(3W) max output, 15V power supply, support 2MHz to 700MHz broadband work. This RF Power Amplifier's typical power gain is 35 dB. Suitable for various types of HF, FM, VHF, UHF wireless applications, FM shortwave radios remote control toys, digital radio, etc.

  • Adopts quality circuit board, more stable and more reliable
  • Perfect layout design making everything easy to operate
  • Broadband power amplifier for various types of HF, FM, VHF, UHF wireless applications, FM shortwave radios remote control toys, digital radio, etc.
  • 34.8dbm(3W) max output, 15V power supply, support 2MHz to 700MHz broadband work
  • This RF Power Amplifier's typical power-gain is 35 dB

Specifications:

  • Name: RF Power Amplifier
  • Material: PCB board+plastics+metal
  • Supply voltage: DC12-15V (typical 15V 0.3-0.5A)
  • Working frequency: 2MHZ-700MHZ
  • Input and output impedance: 50 ohms
  • Maximum output power: 34.8dbm(3W)
  • Maximum input power: <+10dBm
  • Typical power gains: 35 dB (> 300M gains slightly decreased)
  • Item size: 75 * 32 * 28mm / 2.95 * 1.26 * 1.10in
  • Item weight: 23g / 0.81ounce

Package included:

  • 1 x RF Power Amplifier

Specifications

Gross Weight 0.036kg
Volume Weight 0.048kg
Package Length 10.000cm
Package Width 7.100cm
Package Height 3.000cm
One Package Weight 0.033kg
With Retail Packaging No
TP10310336533A-1
TP10310336533A-2
TP10310336533A-3
TP10310336533A-4
TP10310336533A-5
TP10310336533A-6
