Product Description

10W Max USDX + USDR HF QRP SDR SSB/CW Transceiver 5W 8 Bands Shortwave Radio – US Plug

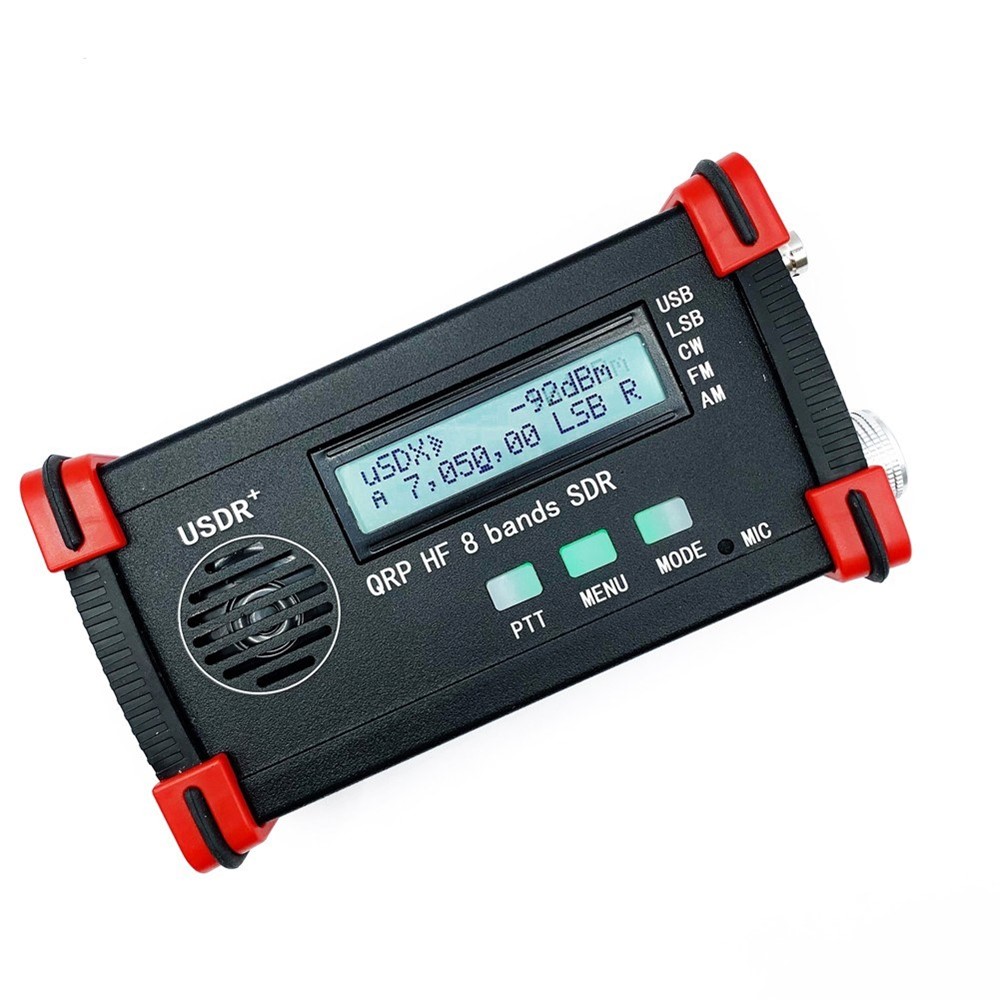

This is a shortwave QRP SSB/CW transceiver, it adopts a 1602 screen and with built-in battery, also comes with a recharger for you to use together. With powerful functions such as CW decoding, 8 bands, full bands support and so on.

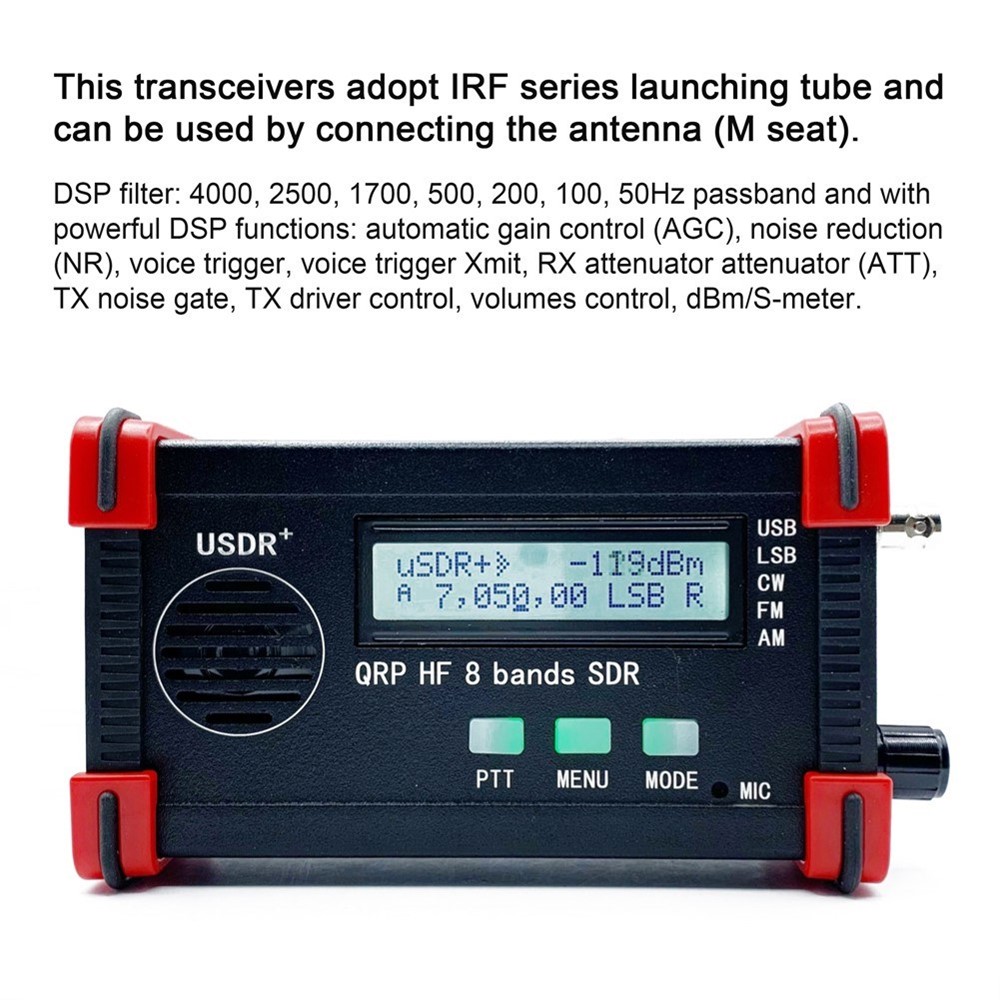

  • This transceiver adopts IRF series launching tube and can be used by connecting the antenna (M seat)
  • Full mode support: USB, LSB, CW, AM, FM. Multi-band support, continuously adjustable in the 160m-10m frequency band (and performance loss from 20kHz..99MHz)
  • DSP filter: 4000, 2500, 1700, 500, 200, 100, 50Hz passband and with powerful DSP functions: automatic gain control (AGC), noise reduction (NR), voice trigger, voice trigger Xmit, RX attenuator (ATT), TX noise gate, TX driver control, volumes control, dBm/S-meter
  • Software-based voice trigger Xmit can be used as a quick full invasive (QSK and semi-QSK operation), or to assist in running in digital mode (without C-AT or PTT interface) for RX/TX switching, external PTT output with TX/PA control-delay
  • Thanks to EER transmitters E-level, it has high power efficiency (no bulky heat sink required), and simple design (no need for complex balanced linear power amplifiers)
  • SSB transmitters stage based entirely on digital and software: By controlling the phase of the SI5351 PLL (via the tiny frequency change of I2C over 800kbit/s) and the amplitude of the PA (via the PWM of PWM) to sample the microphone input and reconstruct the SSB signal. PA keys shaping circuit)
  • Fully digital and software-based SDR receiver stage (optional): sample the I/Q (complex) signal from the quadrature sampling detector digital mixer, and perform a 90-degree phase shift in the software (Hilber transform) and eliminate one by adding sidebands
  • Fully digital and software-based SDR receiver stage (optional): sample the I/Q (complex) signal from the quadrature sampling detector digital mixer, and perform a 90-degree phase shift in the software (Hilber transform) and eliminate one by adding sidebands

Specifications:

  • Material: Aluminum
  • Plug: EU Plug, US plug (optional)
  • Receiver noise level MDS: -135 dBm (200Hz BW) at 28MHz
  • Receiver front-end selectivity: steep tuning frequency -45dB / ten times roll-off ±2kHz
  • Blocking dynamic ranges: 20kHz offset 123dB, 2kHz offset 78dB
  • Rf output: 10W max at 13.8V exit direct current in(Positive is the center)
  • Frequency ranges: 3.5-30MHz

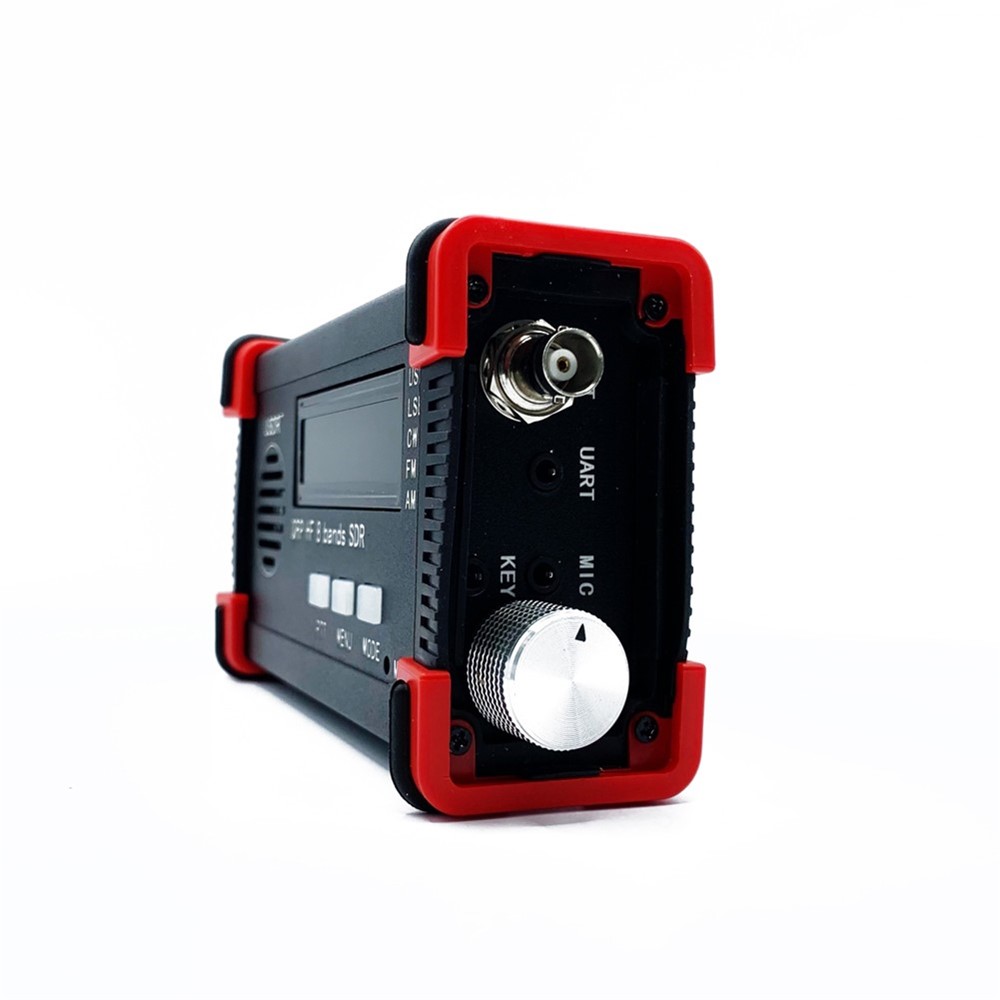

  • Antenna/connector: 50ohms/SO-239
  • Battery: 1 * lithium battery, 3600mAh (included)

Package included:

  • 1 x Transceivers
  • 1 x Power Adapter
  • 1 x Microphone

Specifications

Adapter Plug US Plug
Brand N/A
Gross Weight 0.825kg
Volume Weight 0.387kg
Package Length 18.000cm
Package Width 12.000cm
Package Height 8.000cm
One Package Weight 0.736kg
With Retail Packaging No
