Price:
$ 4.63

Free Shipping

For just $ 4.63 , buy 2pcs High-power Raspberry Pi Camera Board Module 1W 850 Automatic Infrared Illuminator IR LED Light with Adjustable Resistor from the wholesale webshop online.

Specifications

Gross Weight 0.021kg
Volume Weight 0.039kg
Length 10.000cm
Width 8.600cm
Height 2.000cm
Weight 0.019kg
With Retail Packaging Yes

Product Description

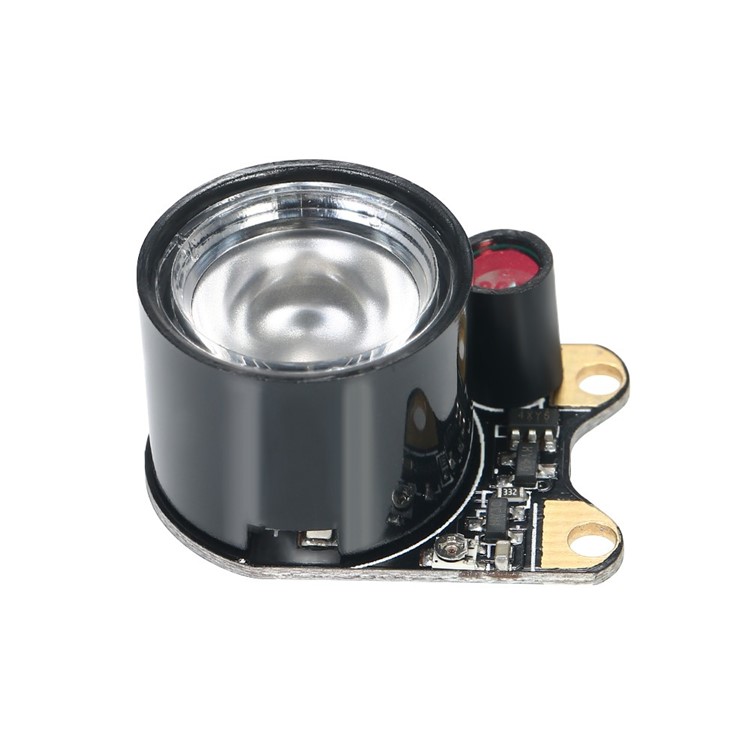

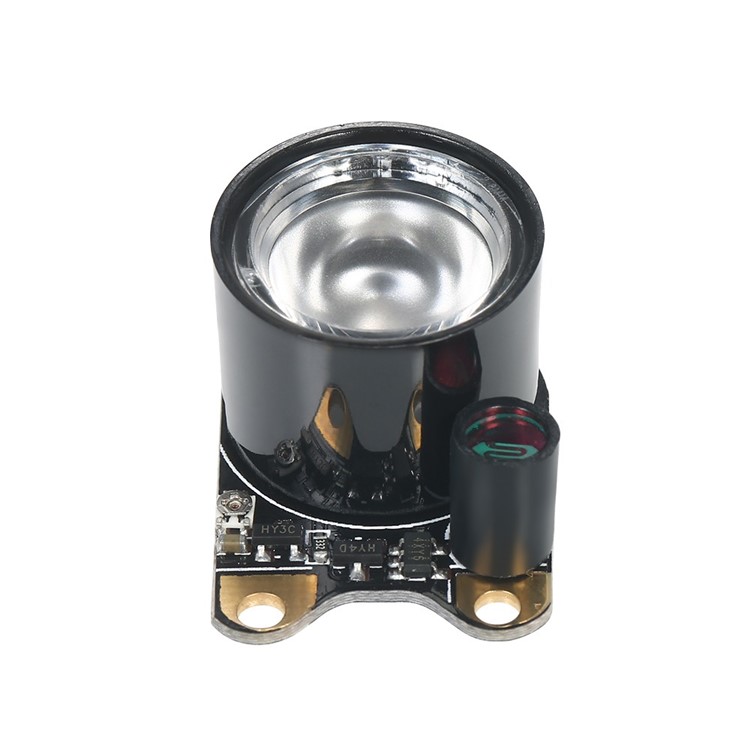

2pcs High-power Raspberry Pi Camera Board Module 1W 850 Automatic Infrared Illuminator IR LED Light with Adjustable Resistor
  • 1W 850 infrared LED light

  • Onboard photoresistor, the ambient light detector

  • Great imaging distance is within 2m

  • With adjustable resistor to control the ambient light

  • Designed to work for Raspberry Pi camera

Note:

  • Limited by the Raspberry Pi power supply, the 1W infrared LED and power chip might increase heat, heat sinks are suggested

  • Great imaging distance is within 2m

Specification:

  • Material: ABS

  • Power: 1W

  • Voltage: 5V

  • Current: 5A

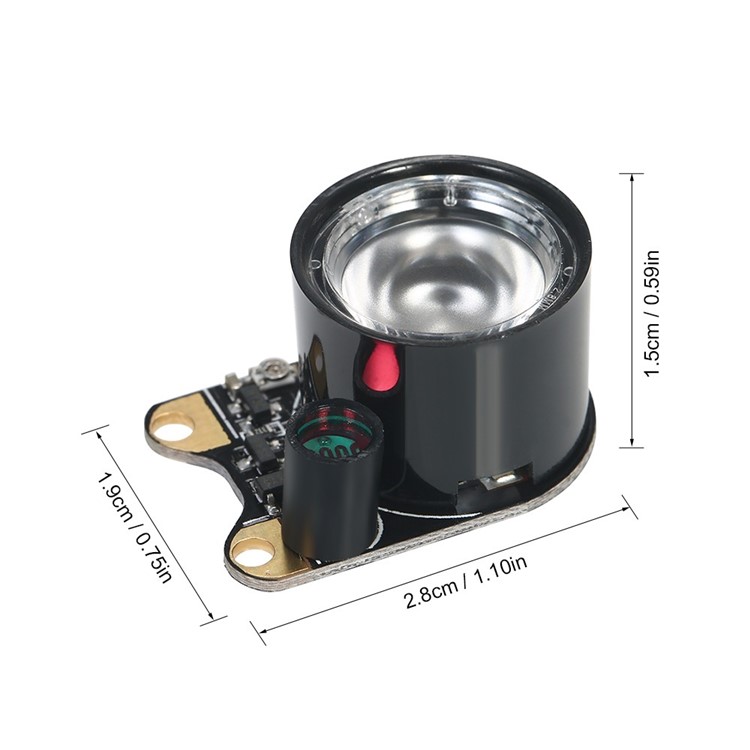

  • Module Size: 2.8×1.9×1.5cm / 1.10×0.75×0.59in

How to use:

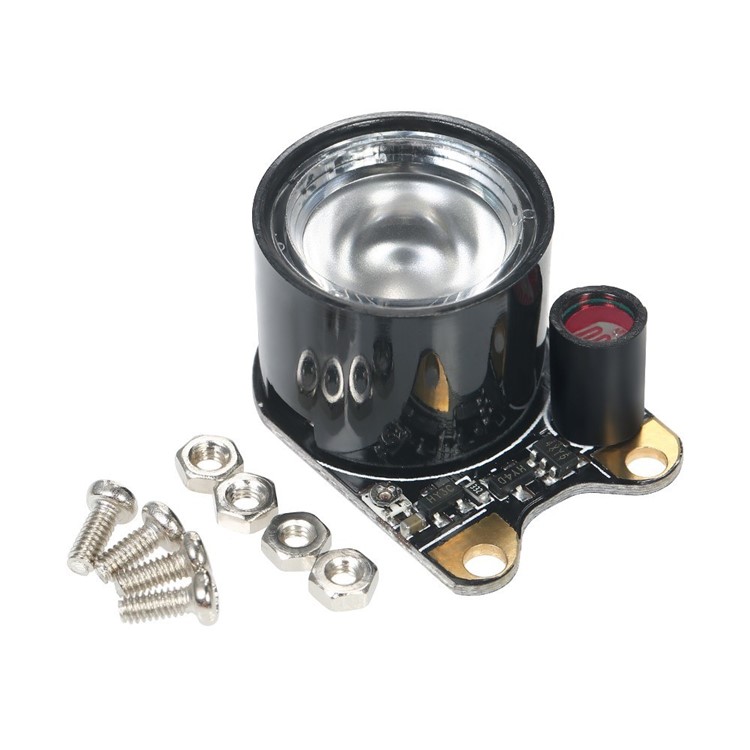

  • Connect the Infrared LED Board to the camera PCB by screws

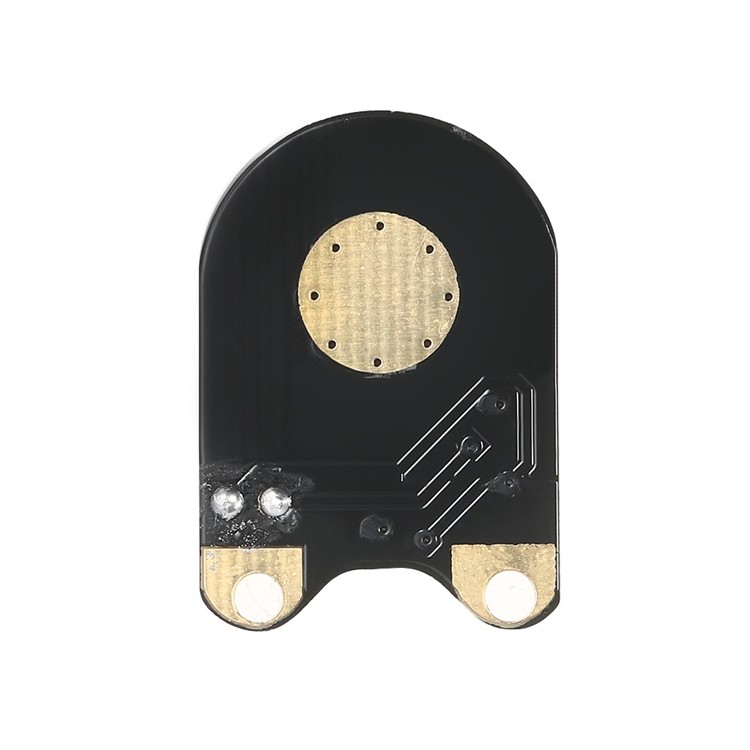

  • The screw holes are used for both attachment and power supply

  • Adjust the adjustable resistor to set a proper ambient light threshold, which toggles the infrared LED automatically

  • When ambient light is lower than threshold value, the infrared LED is on, vice versa

Package included:

  • 2 x Camera Board Modules
